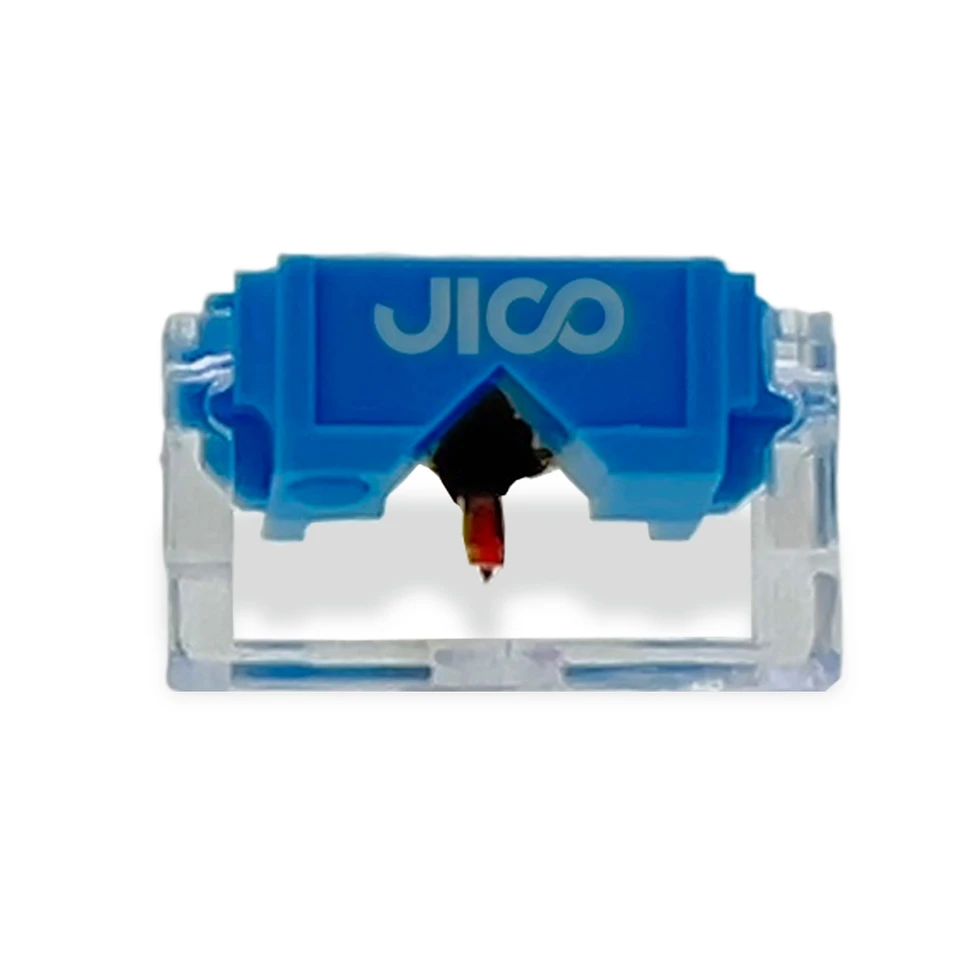

Jico N-44-7 DJ IMP SD Ersatznadel

The N44-7 DJ SD stylus, manufactured in Japan, is crisp and clear in the higher frequencies. At the same time, with strong bass, powerful and distinctive, it rounds off a lively, powerful, and dynamic sound image. This stylus is perfectly suited for scratching and beat juggling applications, e.g., with control vinyls. JICO “SD” stylus needles are made entirely of synthetic diamonds. Synthetic diamonds (SD) are artificially produced diamonds that have the same chemical composition, crystal structure, optical/physical properties, and hardness as natural diamonds (ND). Natural diamonds vary in hardness due to their natural formation, while synthetic diamonds offer the advantage of consistent hardness. The SD tips are conical in shape. Their guaranteed playing time has been set at 200 hours.

The JICO N-44 7 DJ SD replacement stylus is suitable for the JICO J44A-7 system and, as a replica, also suitable for the Shure M447 pickup system.

Features:
Replacement stylus for Jico J44A-7 system
Replica also suitable for Shure M447
Recommended use: Scratching and beat juggling with control vinyls
SD (synthetic uncoated diamond)
Needle cut: Spherical
Output voltage 5.0-8.0mV
Color of replacement stylus: Blue
Frequency response: 20 Hz - 20,000 Hz
Tracking force: 3.5~4.5g
Made in Japan

Technical specifications:
Color of replacement stylus: Blue
Output voltage (1kHz, 5 cm/sec): 8mV
Recommended load: 47 kΩ
Tracking force: 3.5~4.5g
Frequency response: 20 Hz - 20,000Hz
Channel balance: 1.5 or less
Channel separation (1kHz): 20db
DC resistance: 800Ω
Compliance: L8.5 / V8.5
Needle carrier (cantilever): JICO Type S
Needle cut: Spherical
Tip size: 0.7mm
Application: Scratching and beat juggling with control vinyls
Height: 35 mm
Weight: 16 g
