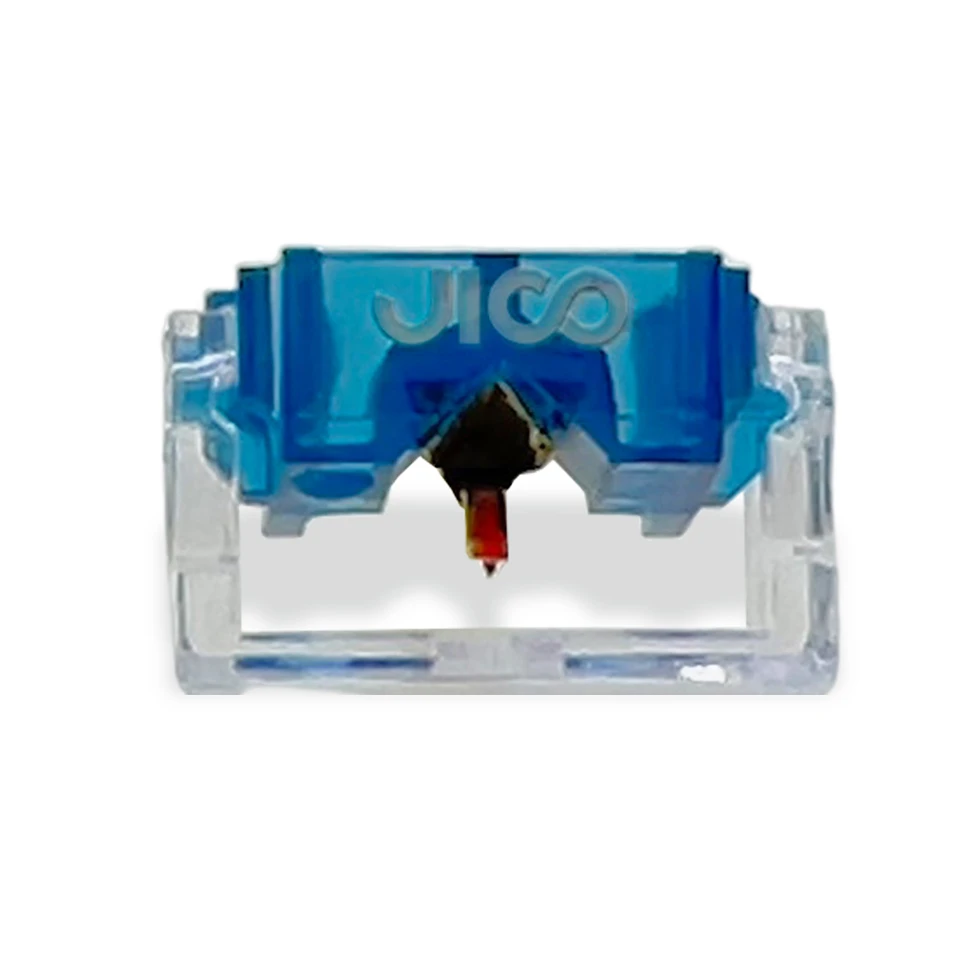

Jico N-44G DJ IMP SD Ersatznadel

The N44G DJ IMP SD stylus, manufactured in Japan, delivers crisp and clear high frequencies. Combined with strong, powerful bass, it rounds off a lively, powerful, and dynamic sound image. JICO “SD” styluses are made entirely from synthetic diamonds. Synthetic diamonds (SD) are artificially produced diamonds that have the same chemical composition, crystal structure, optical/physical properties, and hardness as natural diamonds (ND). Natural diamonds vary in hardness due to their natural formation, while synthetic diamonds offer the advantage of consistent hardness. The SD tips are conical in shape. Their guaranteed playing time has been set at 200 hours.

The JICO N-44G DJ IMP SD replacement stylus is compatible with the JICO J44D system and, as a replica, is also compatible with the Shure M44G pickup system.

Features:
Replacement stylus for Jico J44D
Replica also suitable for Shure M44G
Recommended use: Club use / scratching with control vinyls
High-definition sound and 3D audio image
SD (synthetic uncoated diamond)
Stylus shape: Spherical
Output voltage 5.0-8.0mV
Color of replacement stylus: Dark gray
Includes stylus guard
Frequency response: 20 Hz - 20,000 Hz
Tracking force: 3.5~4.5g
Made in Japan

Technical specifications:
Cartridge type: Moving magnet (MM)
Output voltage (1kHz 5 cm/sec): 8mV
Recommended load: 47 kΩ
Tracking force: 3.5~4.5g
Frequency response: 20 Hz - 20,000Hz
Channel balance: 1.5 or less
Channel separation (typical at 1kHz): 20db
DC resistance: 800Ω
Compliance: L8.5 / V8.5
Tonearm: JICO Type S
Stylus: SD diamond, spherical needle cut
Stylus size: 0.7mm
Application: Club use and scratching with control vinyls
