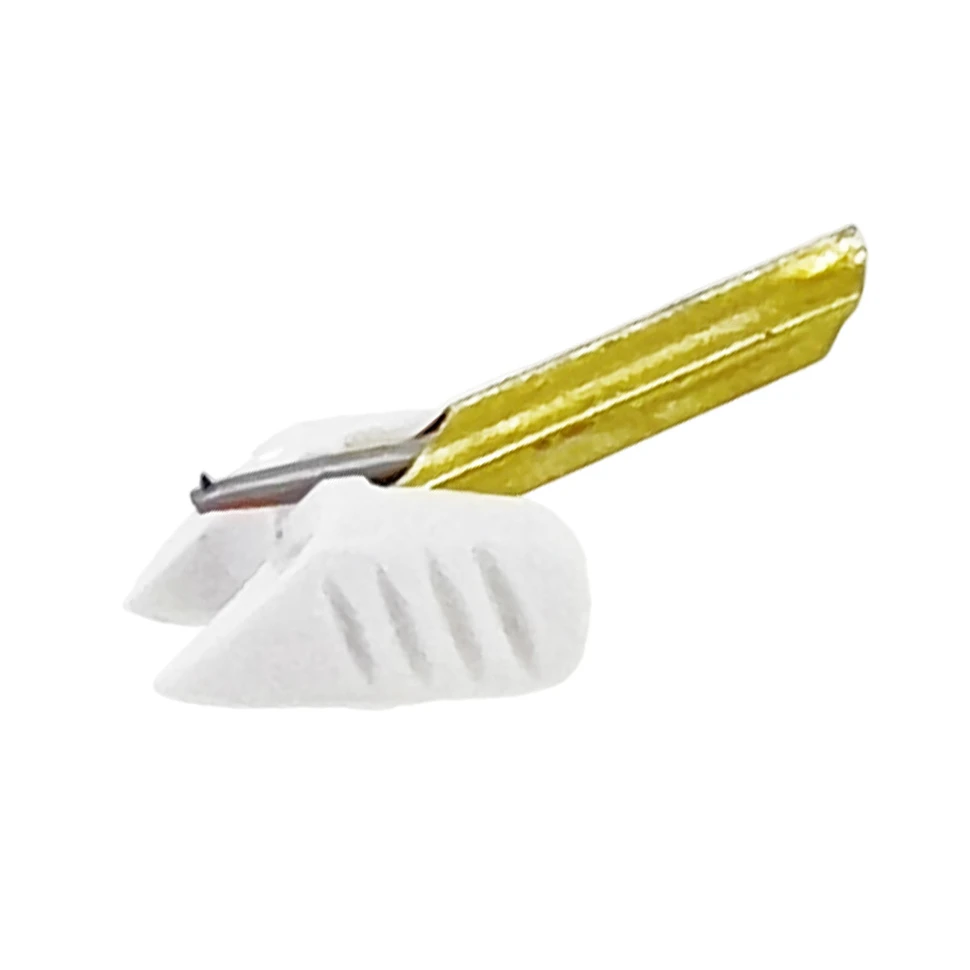

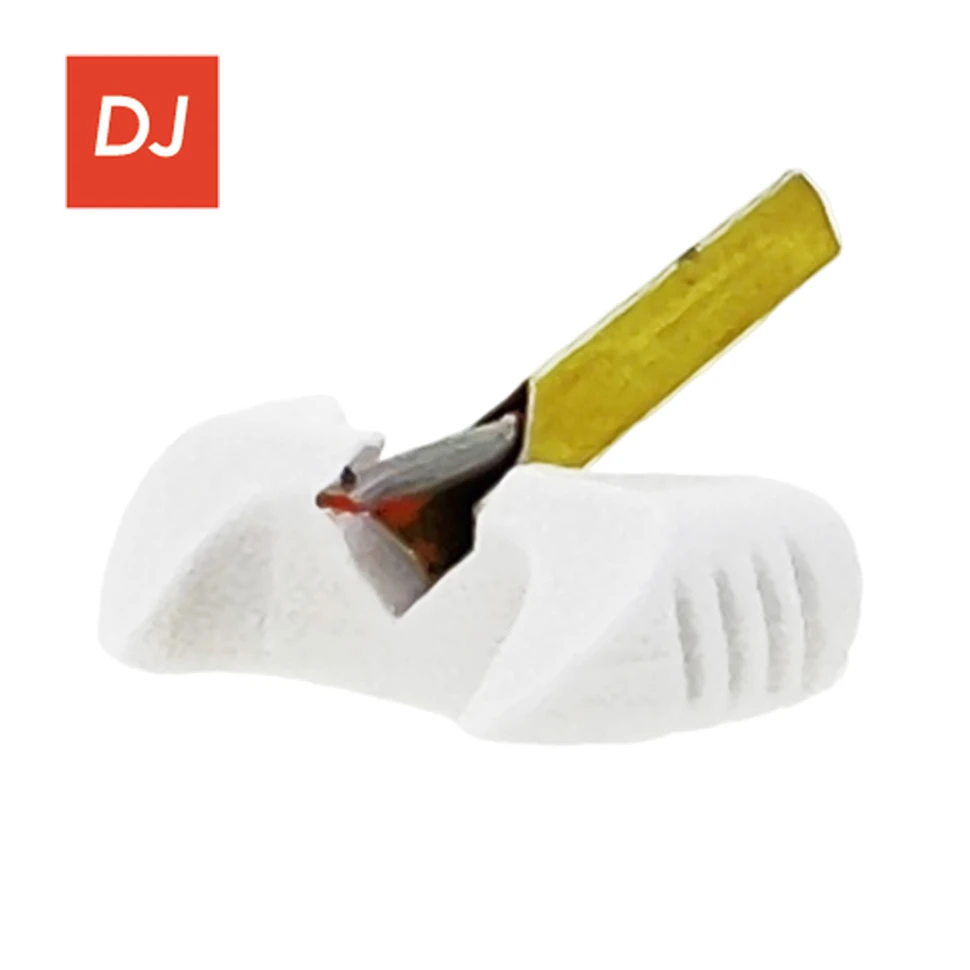

Jico N-WHLB SD Ersatznadel

The N-WHLB SD replacement stylus was developed to reproduce the characteristics of the original Shure Whitelabel stylus. JICO N-WHLB replacement stylus is a replica and compatible with Shure Whitelabel. JICO “SD” styluses are made entirely of synthetic diamonds. Synthetic diamonds (SD) are artificially produced diamonds that have the same chemical composition, crystal structure, optical/physical properties, and hardness as natural diamonds (ND). Natural diamonds vary in hardness due to their natural formation, while synthetic diamonds offer the advantage of consistent hardness. The SD tips are conical in shape. Their guaranteed playing time has been set at 200 hours.

Features:
Replacement stylus
Replica suitable for Shure WHLB
Recommended use: Club use and audiophiles
High-definition sound and 3D audio image
SD (synthetic uncoated diamond)
Needle cut: spherical
Includes stylus guard
Frequency response: 20 Hz - 20,000 Hz
Tracking force: 1.5~3.0g
Made in Japan

Technical specifications:
Output voltage (1kHz 5 cm/sec): 6 mV
Recommended load: 47 kΩ
Tracking force: 1.5~3.0g
Frequency response: 20 Hz - 20,000Hz
Channel balance: 1.5 or less
Channel separation (typical at 1kHz): 20db
Tip: SD spherical stylus
Application: Club use and audio pile
