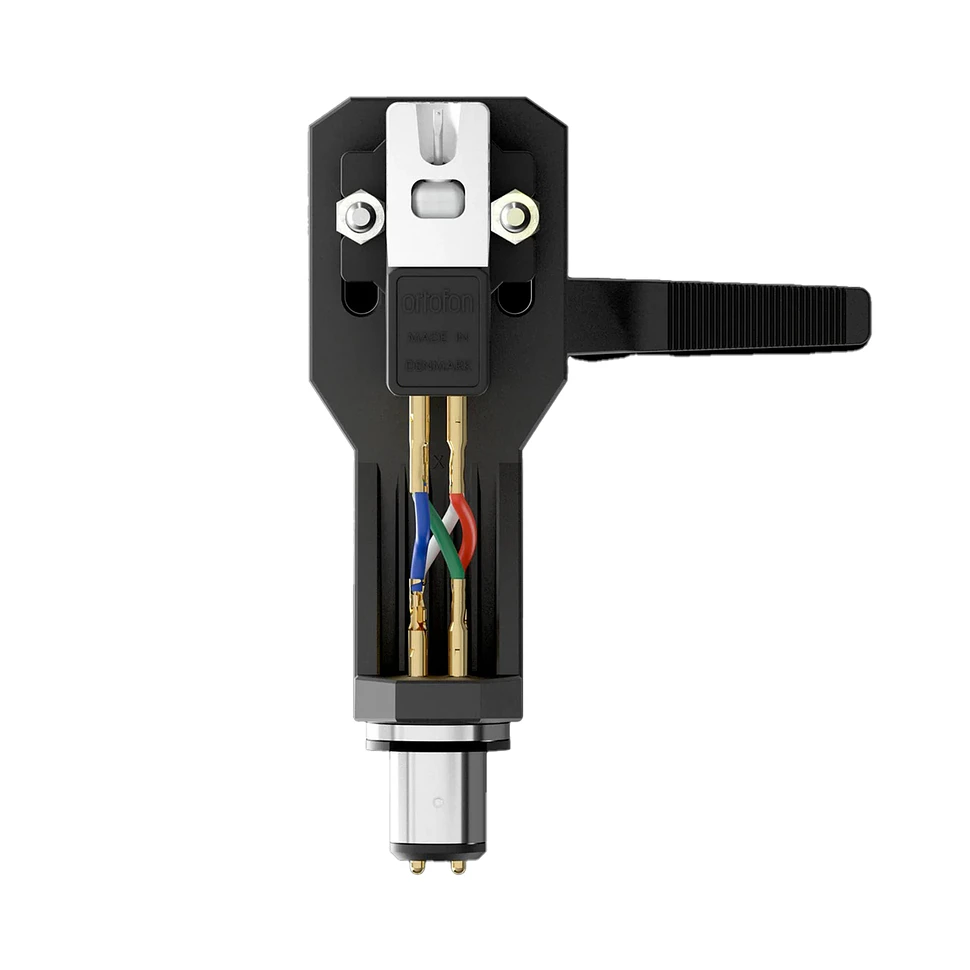

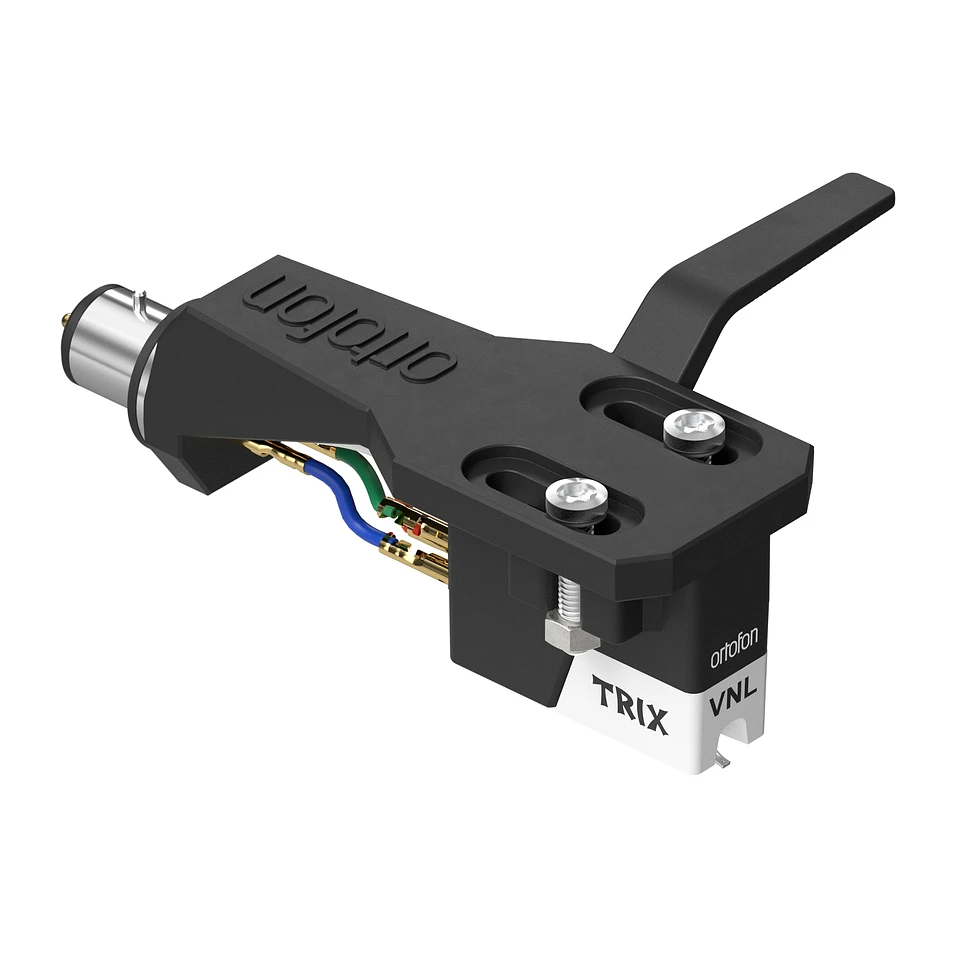

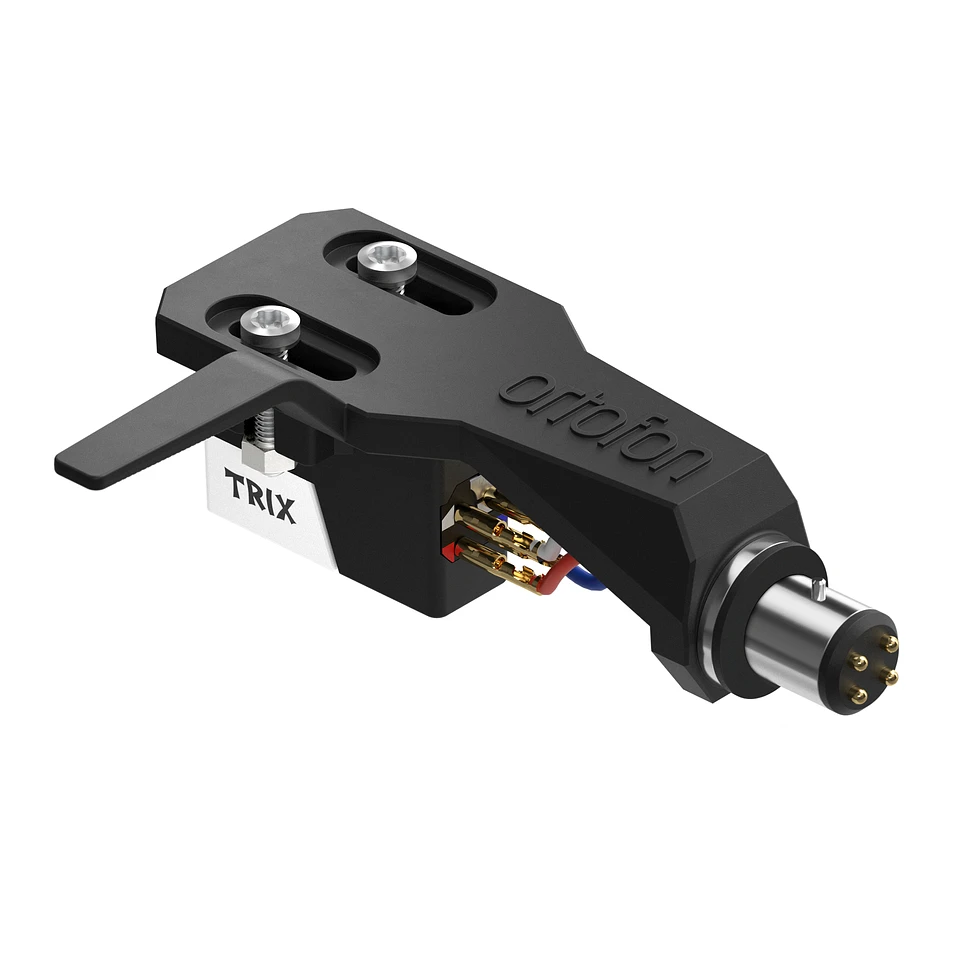

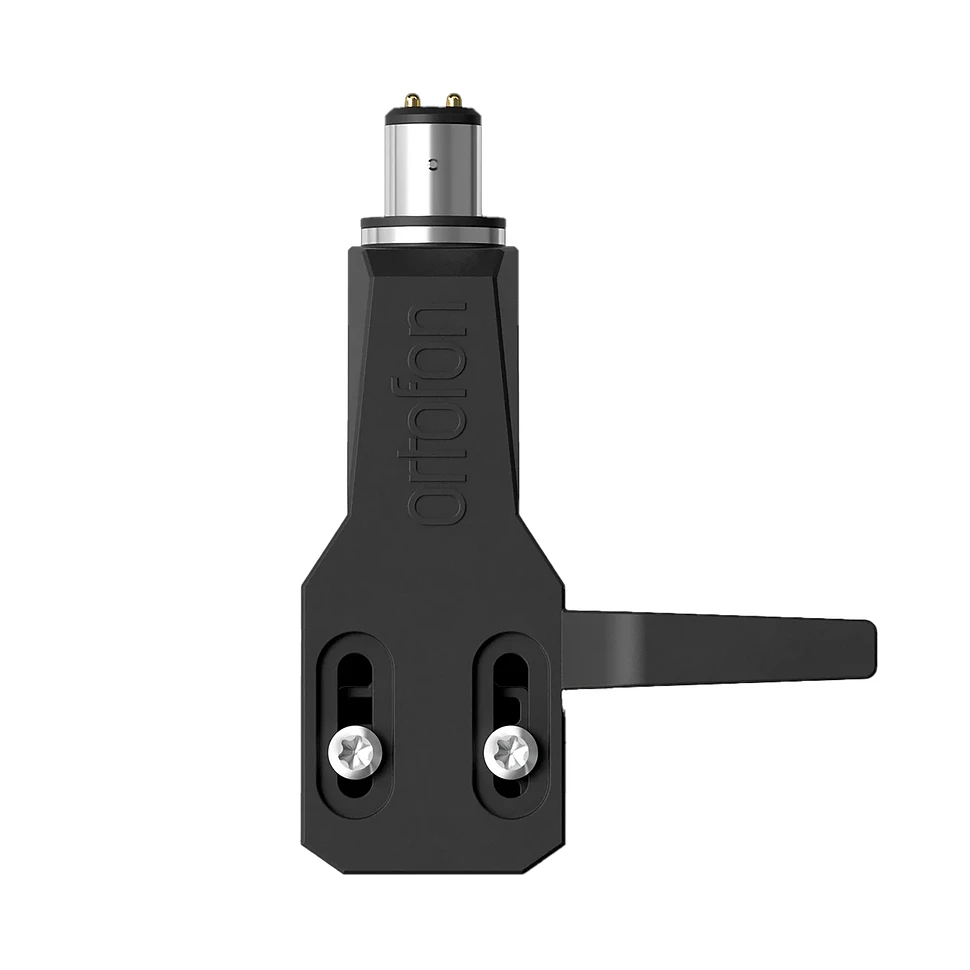

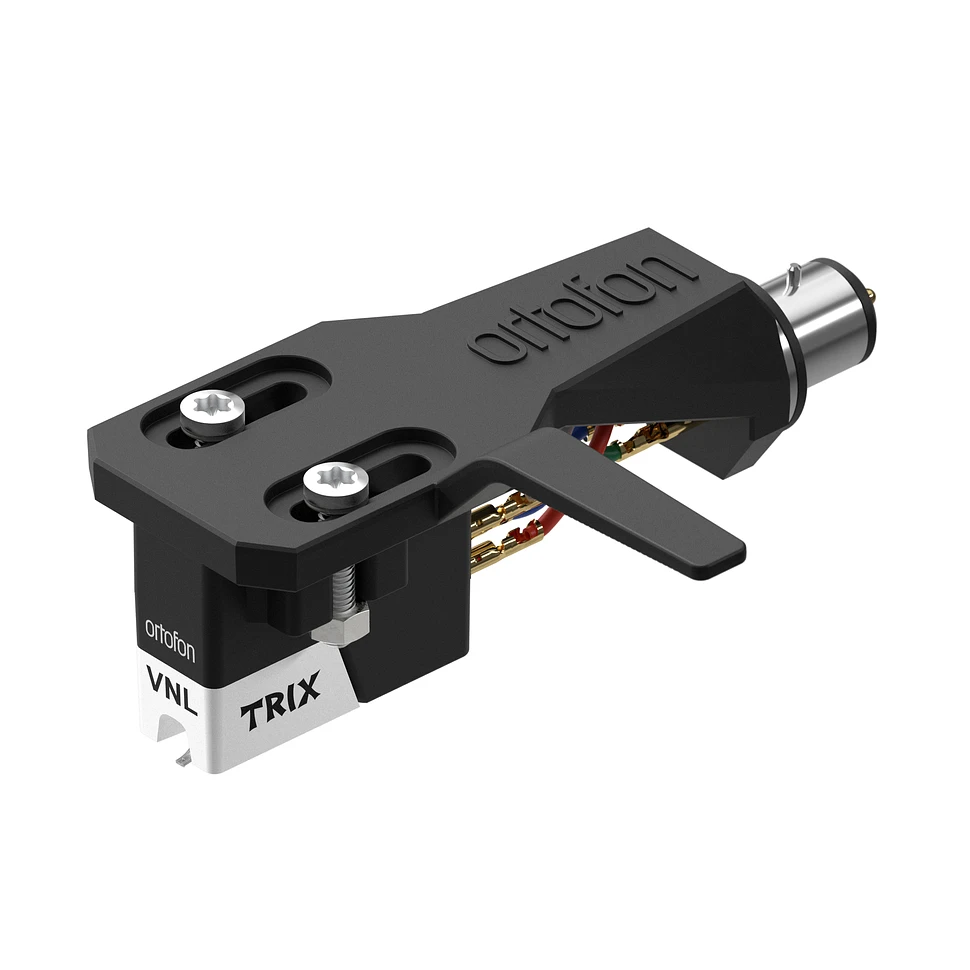

Ortofon VNL TRIX Premounted on SH-2

VNL TRIX Premounted on SH-2 Headshell

VNL TRIX AND VNL DANCE - Precision tools for professional DJs

Ortofon follows up with the brand new VNL TRIX and VNL DANCE, the latest additions to the VNL series. Robustly built, tuned for performance, and stage-ready. The VNL TRIX and VNL DANCE cartridges are perfect for DJs who demand both high output and precision.

LOUD. CLEAR. POWERFUL. With an output of a full 10 mV, these systems deliver high levels and crystal-clear signals for any setup – from underground raves to big stages. Louder than ever, they bring pure energy to the system.

VNL TRIX With a spherical stylus on a sturdy aluminum stylus carrier and Ortofon's exclusive rubber suspension, the VNL TRIX is built for tough use. The fluorescent white stylus makes cueing easier, and the high-quality tracking ability keeps the system safely in the groove – even during heavy scratching and back cueing.

VNL DANCE Same rugged construction, but with an elliptical stylus that delivers more precise detail and fuller sound. The neon yellow, fluorescent stylus glows under UV light and adds a visual exclamation point to your setup. TRIX and DANCE are fully VNL-compatible, so you can swap styluses depending on your mood and set.

KEY FEATURES
• 10 mV output voltage – LOUD. CLEAR. POWERFUL.
• Extreme tracking accuracy – Ideal for scratching and back cueing.
• Replaceable stylus – Maximum flexibility for every set.
• Fluorescent stylus – Markings visible even in the dark/under UV light.
• Sound on a new level – Rich sound with clarity and punch in every genre.

Output voltage: 10 mV
Tracking ability: 100 μm
Stylus carrier material: Aluminum
Stylus type: Spherical
Stylus tip radius: R 18 μm
Stylus suspension: Ortofon exclusive
Coil system & wire: Quadruple coils/OFC
Channel separation at 1 kHz: 22 dB
Frequency response 20 Hz–20 kHz: +/-3 dB
Dynamic lateral compliance: 12 μm/mN
Recommended tracking force: 4.0 g
Recommended load resistance: 47 KΩ
Cartridge weight: 7 g

Ortofon is pleased to introduce the SH-2 BLACK – a universal headshell designed for stability, durability, and seamless integration with a wide range of turntables. It is designed to be so versatile that it works equally well for everyday vinyl playback and dedicated listening sessions.

Weighing only 9.3 grams, the SH-2 BLACK is optimized for turntables with S- or J-shaped tonearms and standard SME bayonet connectors. This universal connector ensures effortless integration with a wide range of turntables and tonearms.

The SH-2 BLACK features a finger lift with the same form factor as Ortofon's latest Concorde cartridges, offering first-class handling and a harmonious design for users who appreciate both aesthetics and quality.

Made from a glass fiber-reinforced copolymer, the SH-2 BLACK combines low weight with exceptional rigidity and low sensitivity to external vibrations. This robust material choice increases playback stability and preserves the integrity of your vinyl sound.

Whether you are upgrading your existing setup or putting together a new system, the Ortofon SH-2 BLACK headshell offers a reliable, high-quality solution for analog playback at the highest level.

KEY FEATURES
• Compatibility – Fits most turntables with S- or J-shaped tonearms with bayonet mounts.
• Stability – Glass fiber reinforced copolymer for durability and resonance control.
• Non-conductive – Prevents ground loops via the headshell material.
• Improved control – Raised finger lift for easy, precise handling of the cartridge.
• Pre-assembled headshell cables – Color-coded with gold-plated contacts for better signal transmission.
