Nagaoka HHV Records 33 Items

50x 12" Record Inner Sleeves

Innenhüllen RS-LP2 (Japan Sleeves / antistatisch / schwarz)

29,99 €*

30x 12" Record Outer Sleeves

Add to Cart Coming Soon Sold out Currently not available Not Enough Coins

RS-LP2 ANTI-STATIC RECORD SLEEVES

More than 35 years ago Nagaoka added them to its program under the type designation No. 102. Because they were the best. And today, in the third development generation called RS-LP2, Nagaoka still sells them - for the same reason!

More effective than any other product, the RS-LP2 prevents the vinyl from static electricity, making it easier to remove the record, protecting the groove from damage caused by dust and preventing the unsightly audible static discharge during playback. Give it a try!

• static charge is prevented
• protects your 12" vinyl records from dust damage
• the smooth cover prevents damage to your records
• one package contains 50 pieces
• Dimensions approx.: 308 x 308 mm, rounded on one side
• Made in Japan

Go to Item

Außenhüllen JC-30 (Japan Sleeves / 0,10mm)

Add to Cart Coming Soon Sold out Currently not available Not Enough Coins

JC-30 RECORD OUTER SLEEVES 325X325MM

To protect your 12" records from dust and other contaminants, Nagaoka has developed the JC-30 outer sleeves. Compared to the earlier model No108/3, the thickness of the sleeves has been revised to provide even more reliable protection. The outer shells measure 325 mm wide x 325 mmm high.

• dimensions: 325 x 325 x 0.10 mm
• selling unit: 30 pieces
• Made in Japan

Go to Item

DJ-44G - Stylus

58,99 €*

Add to Cart Coming Soon Sold out Currently not available Not Enough Coins

Replacement stylus for Shure M44G.

This product is a NAGAOKA produced and manufactured replacement stylus for the M44G, a cartridge widely used by DJs around the world. We have received many inquiries about a replacement stylus compatible with the M44G, since we had 'GD63-44G' in our lineup. After the production of 'GD63-44G' was discontinued, we reviewed the specifications and developed a new model. The new DJ-44G has a high sound pressure, delicate, wide-range, and powerful sound while keeping main features of toughness and solidity from the original M44G replacement.

Technical data
• Vertical tracking force: 2.0-3.5 g
• Material Cantilever: Aluminum alloy
• Material Stylus tip: 0.6 mil spherical bonded diamond
• Compatible cartridge: M44G/M44-7

Go to Item

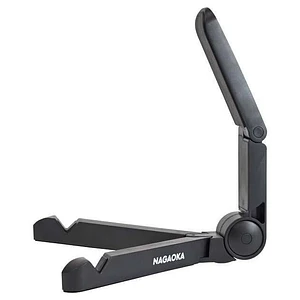

STL-01 Vinylstand

Add to Cart Coming Soon Sold out Currently not available Not Enough Coins

STL-01 Vinylstand - Stand for Records

Discover the innovative vinyl record stand, ideal for a wide range of applications and easy to store when not in use. The use of high-quality TPE material with high padding ensures that your record surface remains protected from damage.

Thanks to the adjustable angles, both LP and EP records can be used with the STL-01 vinyl stand.

Recommended applications:
• Use the stand as a drying table after cleaning your plates with water or liquid cleaner.
• The stand is ideal as an indoor stand for the protective covers of your records.
• Use the stand as a temporary place to store the sleeve of the record you are currently playing.

Physical Properties:
• Weight: 78.9g
• Size (folded): 184 × 25 × 33 mm
• material: ABS (acrylonitrile butadiene styrene)

Special features:
• Space-saving design for easy storage
• Adjustable angles for LP and EP records
• High quality TPE material with high padding to protect the plate surface

Go to Item

CL-120 Argento - Vinyl Record Velvet Brush

Add to Cart Coming Soon Sold out Currently not available Not Enough Coins

The tightly woven velvet on the brush surface is ideal for cleaning the sound grooves of the record and also enhances the cleaning effect. Fine dust adhering to the record is removed. In addition to the CL-120 velvet brush, a special brush is supplied to keep the cleaning surface of the brush clean.

Go to Item

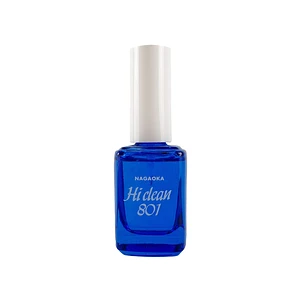

AM-801/2 - Needle Cleaner

24,99 €*

Add to Cart Coming Soon Sold out Currently not available Not Enough Coins

Your record player needle also needs cleaning and care. Due to the air pollution caused by both external influences (traffic) and domestic factors (kitchen, smoking), a sticky film can form on your records over time. During playback, the stylus scrapes this deposit out of the record groove, which in turn creates a sticky film around the tip of the stylus, which in turn traps other dirt and dust on your record.

These deposits not only affect sound quality, but can even damage your favorite records. Nagaoka AM-801's special formula efficiently dissolves and removes any sticky substances trapped on the needle.

Go to Item

AD653-2 - EP-Adapter

13,99 €*

Add to Cart Coming Soon Sold out Currently not available Not Enough Coins

The single adapter is made of high quality milled aluminum and ensures that the EP is centered on your turntable.

Go to Item

SP-558 - Record Cleaning Spray

Add to Cart Coming Soon Sold out Currently not available Not Enough Coins

Cleaning spray for records. The high cleaning effect suppresses static electricity. Wipe dry after spraying.

Go to Item

M207-Y - Cleaning Gel

20x 7" Record Outer Sleeves

Add to Cart Coming Soon Sold out Currently not available Not Enough Coins

Cleaning gel for records, floor coverings, joints, blinds or keyboards. Stubborn dirt is reliably removed. Can be used several times.

Go to Item

Außenhüllen JC-20 (Japan Sleeves / 0,10mm)

11,99 €*

Add to Cart Coming Soon Sold out Currently not available Not Enough Coins

JC-20 RECORD JACKET COVER

Protect your records from dirt and dust with these outer sleeves for 7" singles.

• dimensions: 190 x 190 x 0.10 mm
• selling unit: 20 pieces
• Made in Japan

Go to Item

CLV-30 - Record Cleaning Cloth

Add to Cart Coming Soon Sold out Currently not available Not Enough Coins

The CLV-30 cleaning cloths consist of a tailor-made knitted structure woven with ultra-fine fibres, which is particularly water-absorbent. There are two wipes in one package.

Go to Item

CLP-02 - LP Record Label Protector

35,99 €*

Add to Cart Coming Soon Sold out Currently not available Not Enough Coins

RECORD LABEL PROTECTOR FOR CLEANING

This product is a label protector that protects the label in the middle of the record from water when you clean your records with water.

Considering the requests and improvements received from users for the Label Protector 'CLP01' released in August 2019, the label protector, which screws onto the record label from both sides, has been enlarged to make it more manageable. At the same time, the thickness of the label protector has been reduced so that it is easier to hold.

A replacement rubber seal and a rubber plate are included in the delivery.

Go to Item

JN-P110 - Stylus

88,99 €*

Add to Cart Coming Soon Sold out Currently not available Not Enough Coins

Replacement stylus for Nagaoka MP-110.

To exchange the needle of the MP 110, simply pull off the needle carrier of the system and replace it with the JN-P 110.

Go to Item

MP-110 - Cartridge

158,99 €*

Add to Cart Coming Soon Sold out Currently not available Not Enough Coins

Hear the vivid sound experience that music playback offers with Nagaoka's MP-110 tonearm. Especially in the high-frequency range, the elliptical needle cut ensures better detail resolution. This creates a live atmosphere while listening, which is otherwise known from concerts.

TECHNICAL SPECIFICATIONS:
• Principle: MI - High Output (for the MM input)
• Weight: 6.5g
• Height: 18mm
• Needle cut: Elliptical 0.4x0.7
• Cantilever: aluminum
• Frequency response: 20 - 20,000 Hz
• Output Voltage (1kHz, 5cm/sec): 5.0mV
• Channel Separation (1kHz): >23dB
• Channel balance (1kHz): < 1.5 dB
• Needle compliance: 19 µm/mN
• Recommended tracking force: 18 mN (15-20 mN)
• Recommended termination resistance: 47 kOhm
• Recommended termination capacity: 150 – 200 pF
• Replacement needle: JN-P110
• Cartridge type: without head shell

Go to Item

STB-SU 01 - Vinyl Stabilizer

128,99 €*

Add to Cart Coming Soon Sold out Currently not available Not Enough Coins

Support weight for mass drives

The weight made of stainless steel ensures a better contact between the record and the platter. This suppresses mechanical resonances, which greatly improves the scannability of the microgroove. As a result, your music becomes more detailed, has a clearer resolution and a better defined bass. The ergonomic shape ensures easy handling when placing the weight on the record. It is not necessary to screw it onto the plate mandrel. The contact weight is a little over 500 grams.

Details and technical data:
• Precisely processed by CNC milling
• Avoidance of disruptive resonances, which have a negative effect on the scanning by your pickup
• Made of solid stainless steel for the perfect combination of weight (a little more than 500 grams) and size
• Ergonomic shape for easy handling
• Diameter: 73 mm
• Height: 22mm
• Diameter of the hole for the plate mandrel: 7.5 mm
• Made in Japan

Go to Item

SPW-01 - Record Cleaning Water (150ml)

23,99 €*

Add to Cart Coming Soon Sold out Currently not available Not Enough Coins

Spraying your records with the anti-static spray will reduce crackling during playback.

Go to Item

SP-601 - Record Cleaning Spray (220ml)

28,99 €*

Add to Cart Coming Soon Sold out Currently not available Not Enough Coins

Cleaning spray for records

Application: Spray the record evenly at short intervals for a few seconds and then dry.

Go to Item

SP-562 - Antistatic Record Cleaning Spray

28,99 €*

Add to Cart Coming Soon Sold out Currently not available Not Enough Coins

Antistatic cleaning spray for records. Cleaning will reduce the frictional resistance of the needle.

Go to Item

CLP-01 - LP Record Label Protector

28,99 €*

Add to Cart Coming Soon Sold out Currently not available Not Enough Coins

RECORD LABEL PROTECTOR FOR CLEANING

Before cleaning the record, the label protector is screwed onto the record label from both sides so that it does not come into contact with water. In this way, record labels are preserved for a long time.

Go to Item

JTS-80LB - Stylus

148,99 €*

Add to Cart Coming Soon Sold out Currently not available Not Enough Coins

Replacement stylus Nagaoka JTS-80LB for the pickup JT-80LB.

Go to Item

JT-80LB - Cartridge (MM) Jeweltone

228,99 €*

Add to Cart Coming Soon Sold out Currently not available Not Enough Coins

The Nagaoka JT-80LB (Lapis Blue) cartridge with its shiny blue needle insert is the basic model of the series and features an aluminium needle carrier with a set diamond. With its open, powerful sound, it offers exceptional value for money. The cartridge unfolds its full potential after an approx. 80-hour play-in period.

TECHNICAL SPECIFICATIONS:
• Format: Moving magnet type (MM type)
• Output: 5.0 mV (5 cm / sec)
• Frequency characteristic: 20Hz-20,000Hz
• Channel separation: 23dB (1Khz)
• Channel balance: 1.5 dB or less
• Cantilever: Aluminum alloy
• Needle tip: 0.4x0.7mil Ellipse / Joined diamond
• Stylus pressure: 1.3g-1.8g
• Torridge own weight: 6.9g
• Replacement needle: JTS-80LB
• Cartridge type: without head shell

https://www.auditorium.de/attachment/STEREO_3-21_Nagaoka-Abtaster_englisch.pdf

Go to Item

JN-P150 - Stylus

238,99 €*

Add to Cart Coming Soon Sold out Currently not available Not Enough Coins

Replacement stylus for Nagaoka MP-150.

To exchange the needle of the MP 150, simply pull off the needle carrier of the system and replace it with the JN-P 150.

Go to Item

JN-P100 - Stylus

68,99 €*

Add to Cart Coming Soon Sold out Currently not available Not Enough Coins

Replacement stylus for Nagaoka MP-100.

To exchange the needle of the MP 100, simply pull off the needle carrier of the system and replace it with the JN-P 100.

Go to Item

MP-150 - Cartridge

378,99 €*

Add to Cart Coming Soon Sold out Currently not available Not Enough Coins

The design of the MP-150 has been significantly refined. Higher quality magnet materials, a better cantilever and a bonded diamond ensure better tracking and detail reproduction. The bass range also sounds more balanced.

TECHNICAL SPECIFICATIONS:
• Principle: MI - High Output (for the MM input)
• Weight: 6.5g
• Height: 18mm
• Needle cut: Elliptical 0.4x0.7mm
• Needle carrier: stiffened cone aluminum tube
• Frequency response: 20 - 20,000 Hz
• Output voltage (1kHz, 5cm/sec): 4.5mV
• Channel separation (1kHz): > 24 dB
• Channel balance (1kHz): < 1.5 dB
• Needle compliance: 20 µm/mN
• Recommended tracking force: 18 mN (15-20 mN)
• Recommended termination resistance: 47 kOhm
• Recommended termination capacity: 150 – 200 pF
• Replacement needle: JN-P150
• Cartridge type: without head shell

Go to Item

MP-100 - Cartridge

128,99 €*

Check & Change Hearing Test Record

Add to Cart Coming Soon Sold out Currently not available Not Enough Coins

With its round diamond, the MP-100 cartridge is particularly suitable for older records. Even scratches and dirt do not affect the pleasant, neutral sound that this system makes possible. The MP-100 is the most affordable scanner in the MP range.

TECHNICAL SPECIFICATIONS:
• Principle: MI - High Output (for the MM input)
• Weight: 6.5g
• Height 18mm
• Needle cut: Round 0.6mm
• Cantilever: aluminum
• Frequency response: 20 - 20,000 Hz
• Output Voltage (1kHz, 5cm/sec): 5.0mV
• Channel separation (1kHz): > 22 dB
• Channel balance (1kHz): < 2.0 dB
• Needle compliance: 19 µm/mN
• Recommended tracking force: 21 mN (18-23 mN)
• Recommended termination resistance: 47 kOhm
• Recommended termination capacity: 150 – 200 pF
• Replacement needle: JN-P100
• Cartridge type: without head shell

Go to Item

V.A.

12" | JP | Original (Nagaoka)

4,99 €*

Release: JP – Original

Genre: Organic Grooves

Add to Cart Coming Soon Sold out Currently not available Not Enough Coins

Used Vinyl

Medium: Near Mint, Cover: VG

Go to Item

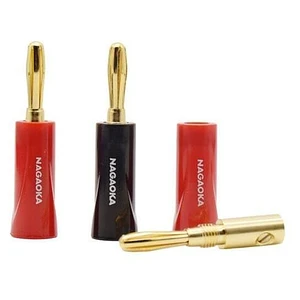

Banana Plugs - BAP 01

15,99 €*

Add to Cart Coming Soon Sold out Currently not available Not Enough Coins

Banana Plugs - BAP 01 Speaker connectors Pack of 4

The Banana Plugs consist of insulated connectors with resin caps that allow for easy plugging and unplugging. The slim design does not affect the top, bottom, left and right connection terminals on the speaker or speakers.

Screw fastening
The core cable is attached using two screws. These connectors are suitable for F4~4.5mm banana plugs and can accommodate a core cable outline of up to F2mm.

With their practical design, they are a reliable solution for electrical connections.

You will receive two plugs with red and two plugs with black resin caps per package.

Go to Item

WCL-222 Argento Micro - Vinyl Record Velvet Brush

38,99 €*

Add to Cart Coming Soon Sold out Currently not available Not Enough Coins

Micro Wet Brush

Spray a cleaning fluid onto the velvet brush and brush along the sound groove of the record. Then wipe with a soft cloth. After use, dry the brush thoroughly, remove any dust and store it in its box. If the body becomes brown and dirty, we recommend that you replace it as soon as possible.

Go to Item

HSAL-1 Headshell

78,99 €*

Add to Cart Coming Soon Sold out Currently not available Not Enough Coins

Nagaoka Headshell HSAL-01

This headshell has been designed with the utmost precision to give you an outstanding listening experience.

Design for maximum ease of use:
When placing the needle, the finger lift design provides an excellent view of the needle tip. The finger hook is easy to use and the angle can be easily held with your fingers. Every detail has been designed with the utmost care to ensure uncomplicated and pleasant use.

Ideal for NAGAOKA JT-80 Series and many other pickups:
This high-quality headshell was developed specifically for the NAGAOKA JT-80 series to ensure an optimal combination of precision and performance. Enjoy music in its purest form with this perfectly coordinated combination.

Of course, the Nagaoka HSAL-01 can also be combined with other pickups. The elongated holes allow the perfect positioning of your pickup and the included cables leave enough room for adjustment.

Easy installation:
The Nagaoka Headshell HSAL-01 comes with an installation guide to give you an effortless setup. The package contains all the necessary items including mounting screws to make the installation process easier for you.

Product specifications:
• Housing material: aluminum
• Pin: Gold plated
• Weight: 6.8g (approximate value, excluding mounting screws)
• Frequency response: 20Hz - 20kHz
• Box contents: headshell housing, lead wire, 2 × 12mm screws, 2 × 6mm screws, compatible nuts, washers.

Go to Item

G JN-03D - Stylus

98,99 €*

Add to Cart Coming Soon Sold out Currently not available Not Enough Coins

Replacement stylus Nagaoka G JN-03D for the pickup DJ-03HD.

Go to Item

DJ-03 HD - Cartridge (MM)

188,99 €*

10x 12" Record Inner Sleeves

Add to Cart Coming Soon Sold out Currently not available Not Enough Coins

DJ-03 HD - CARTRIDGE INCL. HEADSHELL

This is the Nagaoka DJ cartridge. With a high output voltage of 6 mV and a recommended tracking force of 3 - 5 g, it is one of the more stable of its kind.

TECHNICAL SPECIFICATIONS:
• Cartridge type: MM
• Configuration: Climax DS/DSM
• Output voltage: 6 mV (5 cm/sec.)
• Frequency Characteristics: 20Hz~20KHz
• Channel separation: 20 dB (1 kHz)
• Channel balance: 2 dB or less
• Load resistance: 47 kΩ
• Load: 100pF
• Cantilever: aluminum alloy
• Needle Tip: 0.6 mil tapered bonded diamond
• Recommended tracking force: 3~5g
• Pickup weight: 5.1g
• Weight with headshell: 15.1g

Go to Item

Innenhüllen GRS-LP10 (Japan Sleeves / weiß)

Add to Cart Coming Soon Sold out Currently not available Not Enough Coins

• Made from environmentally friendly glassine paper
• including fold-over flap
• perfect for long term storage of high quality vinyl
• 10 pack
• for records with a diameter of 12' (30.48cm), dimensions approx.: 308 x 308 mm
• Made in Japan

Go to Item

CEP-01 - Single Record Label Protector

35,99 €*
