Pro-Ject 150 Items

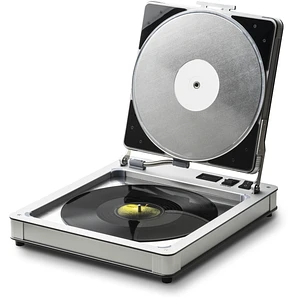

Vinyl Record Flattening Machine

Restore your vinyl collection to its original glory with the Flatten it vinyl record flattening machine. Designed for audiophiles and collectors alike, this device repairs warped records and enhances your listening experience.

Flatten it is designed to restore your warped records with precision and care. It gently and safely flattens your vinyl, improving playback quality by eliminating skips, pops, and distortion. Compatible with all sizes and thicknesses of records, it features premium heated aluminium plates for even heat distribution, ensuring consistent results.

With precise temperature control and a low temperature hysteresis of just 2°C, you can trust that your records are being treated with the utmost attention. The easy-to-use machine boasts a solid aluminium construction, offering durability and long-lasting reliability.

Made in Europe, Flatten it is the perfect solution for vinyl enthusiasts looking to bring their collection back to life.

Features:
• Repairs your warped records
• Gentle and safe vinyl flattening
• Improves playback quality
• Compatible with all sizes & thicknesses
• Premium heated aluminium plates
• Precise temperature control
• Low temperature hysteresis of 2°C
• Easy to use
• Solid aluminium construction
• Made in Europe

Technical Specifications:
• Power connection: 110/120 or 230/240 Volt / 50 or 60 Hz
• Power supply: 12V / 12A DC
• Dimensions: 365 x 60 x 420 mm (W x H x D)
• Weight: 4 kg

Manual: https://www.project-audio.com/wp-content/uploads/2025/02/Flatten-it-Userguide.pdf

Carbon-fibre brush for record cleaning.

Pro-Ject standard dust cover Type 1, suitable for chassis like Debut, 1, 1.2, Xpression.

Eco-friendly record cleaning concentrate for VC-S, VC-E & VC-S2

The ultimate eco-friendly record cleaning concentrate

This new cleaning formula was developed exclusively by Pro-Ject Audio Systems. It does not contain alcohol, which may harm record surfaces. Wash it contains only high-purity components, which are 100% eco-friendly, non-toxic and non-flammable. Wash it is the first solution to clean vinyls & shellac records gentle, but efficiently. Wash it will evaporate without leaving residues on the record surface!

250 ml (will clean about 337 records)

Features
•New highly concentrated cleaning formula by Pro-Ject
•Wash it cleans vinyl records & shellacs
•Wash it contains only high-purity components
•Eco-friendly - Non-toxic - Non-flammable
•Record looks like new after washing
•Dissolves a wide range of impurities including fat/grease
•For very dirty records repeat the cleaning process
•Evaporates quickly and leaves zero residues
•Optimum mix ratio 1:10 to 1:20 with distilled/demineralized water - do not use tap water!
•Optimum application temperature 20 - 40 degrees (mixing ratio for warmed Wash it is 1:20)
•Optimum storage temperature 10 - 25 degrees

Carbon fibre stylus cleaning brush

The Clean it carbon fibre stylus cleaning brush is suitable for daily cleaning of the stylus. The stylus brush is the best tool for quick maintenance and daily cleaning of your needle tip. Clean it gently removes dust and crustification with thousands of the finest carbon fibres. The result is a clean and good sounding diamond stylus that ensures a perfect reproduction of your records.

Features:
• Smooth cleaner for diamant stylus
• Conductive carbon fibers
• Eliminates static charges
• Removes finest dust particles

• Alternative platter mats with special sound characteristcs
• Substitutes felt mats
• Damping of resonances from metal turntable platters
• Less noise
• Avoids static load
• Suitable for all turntables

Single puck

Precision machined single record puck!

Fits all brands and types of turntables and places your 7“ vinyls exactly centrally on the turntable. Adapt it is made from non-magnetic metal, that makes it look first-class. Unlike cheap plastic solutions the Adapt it is unbreakable!

Features:
• Adaptor for use with 7-inch single records
• Locates record centrally on turntable
• No plastic - precision CNC-machined
• Non-magnetic aluminum
• Suitable for all brands and types of record players

Technical Specifications:
• Material: Aluminum, CNC twisted
• Diameter: 38 mm
• Height: 10 mm

Heavy weight record puck

This heavy Record Puck ensures a firm fit between the record and the platter surface.

Record pucks use weight to secure a playing vinyl record against the turntable platter. By holding the two together, the sound performance of the turntable will improve, in timing and depth of sound.

We recommend using heavy weight clamps on RPM, Signature & Xtension series turntables.

The alternative way to achieve this effect on smaller turntables is our record clamp Clamp it.

Features:
• Reduces unwanted vibrations
• Helps with optimum playback of warped records

Technical Specifications:
• Material: Brass
• Weight: 800g
• Diameter: 780mm
• Height: 260mm

Stabilize your records

Reduces unwanted resonances & improves playback of warped records. The label is protected by the felt pad on the underside.

OPTIMIZED PLAYBACK OF YOUR RECORDS
This Record Puck PRO ensures a firm fit between the record and the turntable. Record pucks use weight to secure a record against the turntable. This improves the sound performance of the turntable in terms of timing and sound depth.

Technical Specifications:
• Material: Nickel-plated aluminium
• Weight: 190g
• Diameter: 78mm
• Height: 16mm

High-tech lubricant for constant velocity

How to use Lube it:
A turntable is a delicate instrument and needs proper care. The motor is moving the platter and the bearing‘s lubrication is being worn off over time. This is caused by many factors, such as climate and humidity. Therefore we cannot give a recommended time as to when to replace the lubrication. Best is to keep it constantly lubricated. With Lube it you can keep the bearing of your turntable smooth for a perfect playback. We recommend to keep your turntable constantly moving, as this guarantees a smooth bearing. This however will lead to metal abrasion, so you will need to change the lubrication more often. As to how much you should use, we can only advise to use the amount you feel right. It can‘t be too much, worst case scenario is you will have to clean some lube off your turntable to keep it looking clean.

Please only use Lube it for turntables like Elemental, Primary, T-Line, Essential, Debut, The Classic, Juke Box & X1/X2.
For inverted bearings like RPM Line, Xtension models and Signature Line please use Grease it.

Features:
• Helps a smooth movement
• Easy handling

Amount: 5 ml

Magnetically Stabilized Record Broom

Easy and effective cleaning arm

Record brooms have been around since the early 1970s. Some of them do a good job, some rather not. In many cases the brush rushes towards the middle of the platter, running out of sync with the tonearm. This phenomenon is known as skating. Recent developments aim to tackle this problem. Here the highly efficient neodymium magnet comes into play. These magnets are used to stabilize the record broom of the Sweep it S2. Sweep it S2 is constructed in collaboration with Klaus Mick and uses his patented technology to stabilize the record broom. Extensive theoretical and empirical research has been put into the development of this product.
The magnetic attraction between the neodymium magnet – based in the top part of the cylinder – and the [Fe] core/counterweight stabilizes the record brush. Moreover, the distance between the neodymium magnet and the [Fe] core/counterweight is carefully chosen to ensure a specific magnetic stabilization force. As the aluminium of the brusharm is paramagnetic, it acts like an additional space between the neodymium magnet and the [Fe] core/counterweight.
Sweep it S2 is height adjustable within a range of about 1cm. The position can be locked with the set screw on the base. With this mechanism, it is possible to adjust the height of the arm of the record broom in order to align it horizontally with the platter. A correct horizontal alignment ensures the correct tracking force of about 6g.
Flexible placement

The record broom can be placed in one of two left hand side corners of the turntable. The placement is depending on the type and shape of your turntable. At the optimal position the brush should align with the spindle (i.e. the center of the platter). Deviations (relative to the spindle) between 1,5 to 2 cm are well compensated by design of the Sweep it S2. Higher deviations can cause more drastic skating effects.

Features:
• Neodymium magnet stabilization
• Avoids the common record broom phenomenon known as „skating“
• Height adjustable
• Flexible placement
• Natural hair brush with extremly low electronegativity
• Cleans your records during playback
• Constructed in collaboration with Klaus Mick
• Available in silver and black metal finish

Technical Specifications:
• Weight: 430 g
• Total arm length: 226 mm
• Total height: 65 mm - 75 mm
• Base diameter: 46 mm
• Arm material: Aluminium

Audiophile MM Cartridge

Lively & robust with a high dynamic range

Intensive research, development and listening tests have been necessary to gain the the desired sound from the new Pick it PRO.

THE DIFFERENCE IN SOUND
Cartridges are electromechanical transducers, where mechanical energy is transformed into an electrical signal. The real difference in sound happens here. The colour and life of the music come from the cartridge.
You cannot judge the cartridge by looking at just one specific part. Experience and the art of fine-tuning make a cartridge unique and special. The perfect combination of components is the key to achieve the great charismatic sound of the Pick it PRO.

Technical Specifications:
• Cartridge principle: MM (Moving-Magnet)
• Output voltage at 1 kHz: 4 mV
• Channel separation at 1 kHz: 22 dB
• Tracking ability at 315Hz: 70 μm
• Frequency response: 20 - 20 000 Hz +/- 2dB
• Stylus type: Elliptical
• Stylus tip radius: r/R 8/18 μm
• Tracking force, range: 1,8 - 2,2 g (mN)
• Tracking force, recommended: 2,0 g (mN)
• Tracking angle: 20°
• Internal impedance, DC resistance: 750 Ohm
• Internal inductance: 450mH
• Recommended load resistance: 47kOhm
• Recommended load capacitance: 150-300pF
• Cartriddge weight: 7,2 g

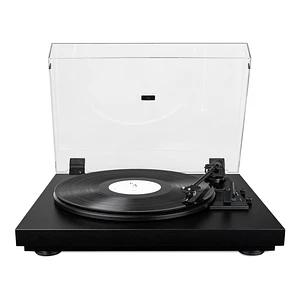

The A1 has a fully automatic start/stop with the automatics being completely disengaged and decoupled during the entire runtime of the record. The fully mechanical automatics are engaged when you press start and the tonearm is automatically moved to the lead in groove of the record. Once playing, the automatics are completely taken out of the equation and do not affect the playback quality.

ULM Aluminium Tonearm
The A1 features an 8.3” ultra-light-mass aluminium tonearm. Together with the Ortofon OM10, which fits this design principle perfectly, we get extraordinary fast response and detail in terms of transients and microdynamics. Tracking force and anti-skating are factory pre-adjusted which make the A1 plug & play ready within a few seconds. This makes it perfect for vinyl beginners and experienced listeners alike as the sound quality is carried by all the audiophile features the A1 has on offer.

Audiophile Features:

• Ortofon OM10 - Detailed Response & Microdynamics
A little-known fact is that the OM series of cartridges have their developmental roots and legacy in ultra-light-mass tonearm designs. Pre-fitted and adjusted in our factory, it is the perfect partner for your A1.

• New Headshell - Carbon fibre reinforced
The headshell is made of carbon fibre reinforced polymer which is super stable and rigid, while keeping the weight super low. The composite material results in excellent internal damping of resonances.

• Wood Chassis - Heavy and avoids hollow spaces
The chassis avoids hollow spaces wherever possible, with just enough space to precision fit all the inner workings of the A1. As a result, the chassis’ heavy mass reduces unwanted resonances to a minimum.

• Damped Platter - Precision balanced aluminium
The damping ring on the inside adds weight and reduces resonances. In the last step the platter is turned and precision balanced to receive its fine edges and lowest wow and flutter deviations.

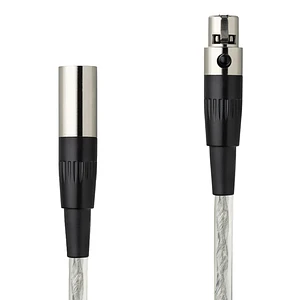

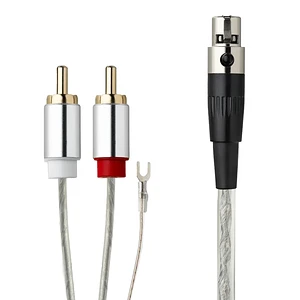

• Connect it E - Semi-balanced RCA cable
To guarantee a perfect connection to your amp we use a high-quality phono RCA cable. Our Connect it E is a semi-balanced, low-capacitance cable, with superior shielding.

• Phono Preamp - Built-in switchable preamp
If you don't have a phono preamplifier in your current HiFi setup you will benefit of the A1s built-in one. If you want to use another phono preamp, you can easliy switch it off.

• 33/45 RPM - Ready for singles & LPs
No need to change the belt position. Easily change speed with the push of only a single button & listen to your favourite LPs aswell as singles.

• Automat Line - Handmade in Germany
The A1 is fully handmade in Germany and looks back on decades of experience. Paired with Pro-Ject technology, it sets new standards in automatic turntable design.

Technical Specifications:
• Speed: 33, 45 (electronic speed change)
• Drive principle: belt drive, fully automatic
• Platter: damped aluminium platter
• Wow & flutter: 33: +/-0,27%; 45: +/-0,25%
• Speed drift: 33: +/-0,75%; 45: +/-0,65%
• Signal to noise: 65dB
• Tonearm: ultra-light-mass 8,3” aluminium tonearm
• Effective arm length: 211mm
• Overhang: 19,5mm
• Included accessories: 15V DC / 0,8A power supply, dust cover, 7‘‘ single adapter, feltmat, phono cable
• Power consumption: 1,5W
• Dimensions: 430 x 130 x 365 mm (WxHxD)
• Weight: 5,6 kg net

Manual: https://www.project-audio.com/wp-content/uploads/2021/11/A1-Userguide.pdf

MM Phono Pre-amplifier

Good sound from sound technology
• Metal case shields the electronics from vibrational and electromagnetic interference
• Special low-noise ICs used
• Optimal channel separation through dual-mono circuitry
• Gold plated RCA connection sockets
• DC power supply (< 1 watt standby power)

Features
• Amplification and RIAA equalisation for MM cartridges
• Small size allows installation close to record player

107x36x104 (115)mm

Manual: http://www.project-audio.com/inhalt/en/manual/manual_phonoboxmm.pdf

Micro audiophile stereo power amplifier

Efficient, audiophile & made in Europe!

The new Amp Box S3 offers one stereo RCA input and delivers powerful and room-filling sound to every loudspeaker. The new PCB concept & sophisticated topology achieves less distortion and a better signal to noise ratio. We designed this amp to match the sound characteristics of a tube amplifier as close as possible. Amp Box S3 brings you a rich and musical sound with an analogue touch of warmth into your living room. It is also the perfect solution for your desktop nearfield monitor speakers due to its size and superior spacious sound stage.

Application examples:
• HiFi Amplifier for 10-15 m2 rooms
• Audiophile desktop nearfield monitor amp
• Streamer power amp upgrade
• Multiroom power amp solution
• Home cinema power amp upgrade
• In-wall or celing speaker amp

The new Amp Box S3 is designed and produced in Europe and is available in a black & silver finish.

Trendy headphone for iPod & Co

super loud, super lightweight & super cool

A cool headphone for the best possible sound reproduction of portable players, like iPod & Co. Hear it Two offers far better audio quality with higher sound pressure levels and superior looks, than many others. Soft and comfortable ear-cushions are swivel mountedmaking it easy to transport Hear it Two in a flat carry case. A high-quality signal-cable made from oxygen-free copper (HP-OFC) with bending protection and gold-plated jack-plug guarantees trouble free performance. Hear it headphones prove again, that outstanding quality does not need to be expensive.

Features:
• Super loud – super light – super cool
• more SPL with iPod & Co (107 dB)
• Lightweight design (77 g)
• adjustable ear-cushion position
• flat transport possible
• high wear comfort
• 3.5 mm jack plug

Technical Specifications:
• Transducer: 30 mm Neodymium driver (dynamic)
• Head-band: adjustable
• Frequency response: 18-22.000 Hz
• Cable material: HPOFC
• Cable length: 1.2 m
• Sensitivity: 107 dB @ 1mW
• Max. sound pressure level: 130 dB
• Impedance: 32 ohms
• Maximum input power: 50 mW
• Connector: 3.5 mm jack plug
• Weight (without cable): 77 g

Tube phono-preamplifier

Innovative miniature sized phono preamplifier with tube output and high end sound!

Tube Box S2 is our very first product to feature a fully discreet circuit design without using any operational amplifiers (OpAmps). It also is the first product to come with replaceable tubes for tube rolling and sound-shaping. This gives the customer many options to pick from and alter the sound signature to his preference. Tube Box S2 will give a full and relaxed laid back sound with lush mids, just like you would expect it from a much bigger high end tube phono pre-amplifier. It offers support for both MM and MC cartridges and comes with many gain settings to be switched on the front panel. Five variable input impedance settings are available to adjust to any MM cartridge, the 47k ohm input impedance setting is fixed and suited for high output MC cartridges. The aluminium/metal casing is adapted to our DS2 line in looks and protects against vibrations and electromagnetic interferences for superior sound.

Compatible upgrade power supply: Accu Box S2

Features:
• Suitable for MM and MC cartridges
• Precise RIAA equalisation in two parts, passive/active
• Fully discreet circuit design without OpAmps
• 2x ECC83 tubes (replaceable)
• Front-sided Subsonic filter button
• Front-sided Gain control
• Ultra low noise circuitry with FET input stage
• Dual mono circuitry for optimized channel separation
• Polystyrene capacitors used where possible
• Gold-plated RCA in- and outputs
• External power adaptor and multiple internal power supplies
• Well-filtrated high-voltage anode power supply
• Sandwich alu/metal casing protects from vibrations and electromagnetic interference
• Available in silver or black

Technical Specifications:
• Tubes: 2 x ECC83 (12AX 7A)
• Input impedance: 10 ohms, 100 ohms, 1 kohm, 2 kohms
• Input capacitance/impedance: 47pF, 147pF, 267pF, 367 pF, 487 pF and 587 pF* / 47 kohms, Together with other input impedance settings without any influence!
• Input gain: 40 dB, 43 dB / 50 dB, 60 dB und 63 dB
• Noise floor: 80 dB (A weighted) at 40 dB input gain, 75dB (A weighted) at 50 dB and 63 dB input gain
• THD: <0.02% at 40 dB input gain <0.05% at 50 dB and 63 dB input gain
• RIAA-equalisation curve accuracy: +/- 0.4 dB/20 Hz - 20 kHz
• Subsonic filter: at 20 Hz with 18 dB/octave
• Input: 1 pair RCA/phono sockets
• Line-level output: 1 pair RCA/phono sockets
• Outboard power supply: 18 V / 1.000 mA DC, suitable for your country's mains supply
• Power consumption: 470 mA DC, <1W in standby
• Dimensions W x H x D with sockets: 103 x 73 x 131 mm
• Weight: 410 g without power supply

Tube phono-preamplifier

Innovative miniature sized phono preamplifier with tube output and high end sound!

Tube Box S2 is our very first product to feature a fully discreet circuit design without using any operational amplifiers (OpAmps). It also is the first product to come with replaceable tubes for tube rolling and sound-shaping. This gives the customer many options to pick from and alter the sound signature to his preference. Tube Box S2 will give a full and relaxed laid back sound with lush mids, just like you would expect it from a much bigger high end tube phono pre-amplifier. It offers support for both MM and MC cartridges and comes with many gain settings to be switched on the front panel. Five variable input impedance settings are available to adjust to any MM cartridge, the 47k ohm input impedance setting is fixed and suited for high output MC cartridges. The aluminium/metal casing is adapted to our DS2 line in looks and protects against vibrations and electromagnetic interferences for superior sound.

Compatible upgrade power supply: Accu Box S2

Features:
• Suitable for MM and MC cartridges
• Precise RIAA equalisation in two parts, passive/active
• Fully discreet circuit design without OpAmps
• 2x ECC83 tubes (replaceable)
• Front-sided Subsonic filter button
• Front-sided Gain control
• Ultra low noise circuitry with FET input stage
• Dual mono circuitry for optimized channel separation
• Polystyrene capacitors used where possible
• Gold-plated RCA in- and outputs
• External power adaptor and multiple internal power supplies
• Well-filtrated high-voltage anode power supply
• Sandwich alu/metal casing protects from vibrations and electromagnetic interference
• Available in silver or black

Technical Specifications:
• Tubes: 2 x ECC83 (12AX 7A)
• Input impedance: 10 ohms, 100 ohms, 1 kohm, 2 kohms
• Input capacitance/impedance: 47pF, 147pF, 267pF, 367 pF, 487 pF and 587 pF* / 47 kohms, Together with other input impedance settings without any influence!
• Input gain: 40 dB, 43 dB / 50 dB, 60 dB und 63 dB
• Noise floor: 80 dB (A weighted) at 40 dB input gain, 75dB (A weighted) at 50 dB and 63 dB input gain
• THD: <0.02% at 40 dB input gain <0.05% at 50 dB and 63 dB input gain
• RIAA-equalisation curve accuracy: +/- 0.4 dB/20 Hz - 20 kHz
• Subsonic filter: at 20 Hz with 18 dB/octave
• Input: 1 pair RCA/phono sockets
• Line-level output: 1 pair RCA/phono sockets
• Outboard power supply: 18 V / 1.000 mA DC, suitable for your country's mains supply
• Power consumption: 470 mA DC, <1W in standby
• Dimensions W x H x D with sockets: 103 x 73 x 131 mm
• Weight: 410 g without power supply

„Best Buy“ MM/MC phono preamplifier

Setting new standards for entry level phono stages!

Phono Box S was one of our favourite products, it offered unrivalled sonics and versitality at a very affordable price. When we started creating Phono Box S2, its successor, it had to have exactly that but improve on sound even further. Phono Box S2 features incredible micro-details, dynamics and precision with a soundstage usually found in much more expensive products. The new S2 style housing is made of an aluminium/metal sandwich construction and not only offers highest aesthetics but also out-standingly protects it from unwanted electromagnetic interferences and vibrations. This guarantees for an undisturbed listening experience without worries. The switches on the bottom of the unit allow fine tuning the sound to your preferences and adjusting Phono Box S2 to any available cartridge!

Phono Box S was considered the best option of all entry-level phono stages by many acclaimed hifi magazines, Phono Box S2 is sure to follow its predecessor‘s footsteps and will set new standards at this price point!

Compatible upgrade power supply: Accu Box S2

Features:
• Audiophile Performance
• Dual mono configuration
• Audiophile-grade amplification modules
• Audiophile-grade polypropylene WIMA capacitors
• Precise RIAA equalisation
• Switchable Subsonic filter –12dB @ 20Hz
• Switchable input impedance/capacitance
• 4 adjustable gain levels
• Outstanding sound quality
• Available in silver or black

Technical Specifications:
• Input impedance: 10 Ohm/ 100 Ohm/1 kOhm / 47 kOhm
• Input capacitance: 100 pF/ 200 pF/ 320 pF/ 420 pF
• Gain switch: 40 dB/ 43 dB/ 60 dB/ 63 dB
• Subsonic switch: -12 dB @ 20 Hz
• Signal-to-noise ratio: 85 dB
• THD+N: 0.01% MM/ 0.05% MC
• RIAA accuracy: < 0,4 dB / 20 Hz - 20 kHz
• In/Out sockets: 1 pair RCA connectors
• Power consumption: 18 V / 85 mA
• Outboard power supply: 18 Volt DC/ 500 mA
• Dimensions ( W x H x D ): 103 x 36 x 115 mm
• Weight: 570 g net

Phono preamplifier

Phono Box E: Pure vinyl listening pleasure at an absolute bargain price!

Today, many amplifiers do not have a specific phono cartridge input. Phono Box E is an ideal phono preamplifier for these hifi systems. Phono Box E accepts MM cartridges and offers an audiophile music experience at an entry level price. Advanced circuitry and SMD construction keep noise and distortion at a surprisingly low level. A built-in internal shielding and an outboard DC power supply leave no risk for external interference. Because of its small casing, Phono Box E can be placed near the turntable. Input and output sockets are gold-plated for preservation of quality. Phono Box E can be connected easily to a line-input (AUX etc) of your amplifier.

Features:
• Amplification and RIAA equalisation for MM cartridges
• Design principle inspired by Dr. Sykora
• SMD circuitry
• Special low noise components
• Internal metal shielding
• Small size allows installation close to record player
• Gold plated RCA connection sockets
• Outboard power supply included
• Black casing

Technical Specifications:
• Input impedance: 47 kohms
• Input capacitance: 120 pF
• Gain: 40 dB
• Output voltage(typically): 500mV/ 1kHz at 5mV/1kHz
• Noise floor: 88 dB (A weighted)
• THD: <0,05%
• RIAA deviation: deviation max. 0.5 dB/ 20 Hz - 20 kHz
• Input: 1 pair RCA socket
• Output: 1 pair RCA socket
• Outboard power supply: 18 V/500 mA DC; 220 - 240 V, 50 Hz
• Standby power consumption: < 1 watt
• Power consumption: 20 mA DC
• Dimension W x H x D (D with sockets): 120 x 32 x 100 (106) mm
• Weight: 269 g without power supply

Dust protection cover

Cover it 1 is a crystal clear acrylic cover for turntables. It protects the turntable & its needle and suits for:
• Ground it deluxe 1
• Ground it deluxe 3
• Ground it Carbon

Turntables:
• Signature 10
• RPM 10 Carbon
• and all smaller Turntables

Technical Specifications:
• Dimensions (WHD): 525 x 290 x 425 mm (Outside)
• Dimensions (WHD): 515 x 285 x 415 mm (Inside)
• Weight 4.3 kg

Equipment base

Ground it deluxe 1 suitable for:
• Xtension 9 Evolution, Xtension 10 Evolution, Xtension 12 Evolution
• Signature 10
• RPM 1 Carbon, RPM 3 Carbon, RPM 5 Carbon, RPM 9 Carbon, RPM 10 Carbon

Features:
• Resonance free placement for turntables & hifi
• Heavy weight base filled with granular damping
• 2 models with adjustable spikes (3 or 4 may be fitted)
• 1 model with height adjustable magnetic feet
• Dark grey piano lacquer finish
• Matches charcoal finish of Pro-Ject turntables

Technical Specifications:
• Dimensions: 500 x 65 (45)x 400 mm incl spikes (without spikes)
• Weight: 11,6 kg

Equipment base

Ground it E is a stable and height-adjustable platform for turntables, that will reduce negative effects of potential surface vib-rations significantly. The use of Ground it E is very simple: Do not place your turntable directly on surfaces such as furniture or shelves that may be vibration sensitive, but place it on Ground it equipment bases. All Ground it bases will improve the sonic performance, so a pleasant, natural reproduction of vinyl music will be possible. The playback quality of a turntable placed on Ground it E will benefit because of improved dynamics and coherent timing. The ambient acoustic of the recording venue will sound much clearer and contoured, so music playback appears to be more realistic, authentic and expressive.

Suitable for:
• Elemental Line
• Essential Line
• Debut Line
• 1Xpression Carbon
• 1Xpression Carbon Classic
• RPM1 Carbon
• RPM3 Carbon

Features:
• Support platform for many turntables or other equipment
• Prevents the transmission of vibrations
• Heavy-weight MDF
• Conical feet with damping ring
• Height adjustable
• Combinable with Cover it E and Cover it RPM 1/3 Carbon
• High gloss piano finish

Technical Specifications:
• Dimensions: 480 x 51 x 390 mm spike feet incl.
• Weight: 4 kg

Wall mount equipment racks

Wallmount it enables record playback free from the effects of impact and vibrating floors.
We recommend installing Wallmount it 5 on less massive walls such as wood or plasterboard, as a vibration damping is integrated.

Features:
Resonance-free wall mount for turntables & Hifi
Playback of records free from any influence by impact noise and vibrating floors
WMI wall mounts use rigid steel frame construction
Height-adjustable spikes to level the board
Maximum load of 30kg

Technical Specifications:
• Colour: Matt black or walnut
• Material: Steel frame construction
• Dimensions: 460 x 60 x 425 mm (W x H x D)
• Surface area: 460 x 400 mm (B x D)

Wall mount equipment racks

Wallmount it enables record playback free from the effects of impact and vibrating floors.
We recommend installing Wallmount it 3 on solid walls, such as Brick.

Features:
Resonance-free wall mount for turntables & Hifi
Playback of records free from any influence by impact noise and vibrating floors
WMI wall mounts use rigid steel frame construction
Height-adjustable spikes to level the board
Maximum load of 30kg

Technical Specifications:
• Colour: Matt black
• Material: Steel frame construction
• Dimensions: 635 x 290 x 455 mm (W x H x D)
• Surface area: 520 x 450 mm (B x D)

(comes without turntable!)

Wall mount equipment racks

Wallmount it enables record playback free from the effects of impact and vibrating floors.
We recommend installing Wallmount it 2 on solid walls, such as Brick.

Features:
Resonance-free wall mount for turntables & Hifi
Playback of records free from any influence by impact noise and vibrating floors
WMI wall mounts use rigid steel frame construction
Height-adjustable spikes to level the board
Maximum load of 30kg

Technical Specifications:
• Colour: Matt black
• Material: Steel frame construction
• Dimensions: 460 x 260 x 455 mm (W x H x D)
• Surface area: 460 x 355 mm (B x D)

(comes without turntable!)

Bearing lubricant

How to use Grease it:
A turntable is a delicate instrument and needs proper care. The motor is moving the platter and the bearing‘s lubrication is being worn off over time. This is caused by many factors, such as climate and humidity. Therefore we cannot give a recommended time as to when to replace the lubrication. Best is to keep it constantly lubricated. With Grease it you can keep the bearing of your turntable smooth for a perfect playback. We recommend to keep your turntable constantly moving, as this guarantees a smooth bearing. This however will lead to metal abrasion, so you will need to change the lubrication more often. As to how much you should use, we can only advise to use the amount you feel right. It can‘t be too much, worst case scenario is you will have to clean some grease off your turntable to keep it looking clean.

Please only use Grease it for turntables with inverted bearings, like RPM Line, Xtension models and Signature Line.
For non-inverted bearings you should use Lube it.

Features:
• To be used with inverted bearings
• Helps a smooth movement
• Pre-filled syringe
• Easy handling

Amount: 2.3 ml

Spirit level

Spirit level for optimum positioning of a turntable.

Electronic stylus balance

The Measure it S2 Stylus Tracking Force Gauge is a highly accurate electronic balance that is designed for measuring stylus trackingforces up to 5.0 grams in 0.001 gram increments. Each Measure it S2 can easily be calibrated with the included calibration weight. The Measure it S2 has a solid aluminum housing with a 4-digit LCD backlit display. Whenever in doubt about the actual amount of pressure on the diamond tip the 4 digit display of this smart tool will help. Armed with precise information about tracking force, your stylus tip wear can be significantly reduced.

Scope of delivery:
• stylus balance
• calibration weight
• screwdriver
• 2x AAA batteries
• protection case for the meter
• user guide

Features:
• 4 digit LCD-Display with backlight
• Capacity 0 - 5g
• Variance ±0,001g
• Auto calibration function
• Auto off after 60 seconds
• Replacement batteries supplied

Technical Specifications:
• Capacity: 0 - 5g
• Variance: ±0,001g
• Weighting modes: gram (1g = 10mN), ounce (oz), pennyweight (dwt) and carat (ct)
• Display: 4 digit LCD with backlight
• Calibration: Auto calibration using a 5g weight
• Auto off: 60 seconds off
• Replacement battery: 2 x AAA cells, 1,5V
• Operating temperature: +10 - +30°C (50 - 86 degrees Fahrenheit)
• Dimensions (W x H x D): 122 x 27 x 55mm
• Weight: 170g

Electronic stylus balance

The Measure it E Stylus Tracking Force Gauge is a highly accurate electronic balance that is designed for measuring stylus tracking forces up to 5.0 grams in 0.002 gram increments. Each Measure it E can easily be calibrated using the supplied calibration weight and by pushing a button. Whenever in doubt about the actual amount of pressure on the diamond tip the 4 digit display of this smart tool will help. Armed with precise information about tracking force, your stylus tip wear can be significantly reduced.

Scope of delivery:
• stylus balance
• calibration weight (5 g)
• 2x LR43 (AG12) button cell batteries + 2 pieces as backup
• protection pouch for the meter
• user guide

Features:
• 4 digit LCD display with backlight
• 4 weighing modes
• Wide capacity 0 - 5g
• Calibration weight
• Precision data readouts with low variance
• Auto calibration function
• Auto power off after 30 seconds
• Low power consumption
• Button cell batteries included

Technical Specifications:
• Capacity: 0 - 5g
• Variance: ±0,002g
• Weighting modes: gram (1g = 10mN), ounce (oz), pennyweight (dwt) & carat (ct)
• Display: 4 digit LCD with backlight
• Calibration: auto calibration using a 5g weight
• Auto off: 30 seconds off
• Replacement battery: 2 x LR43 (AG12) button cells, 1,5V
• Operating temperature: +10 - +30° C (50 - 86 degrees Fahrenheit)
• Dimensions (W x H x D): 96 x 21 x 43mm
• Weight: 49g
