Ortofon 137 Items

If you don’t want to make any compromises when connecting your cartridge, the Ortofon Standard Lead Wire Set delivers exactly the level of reliability you need for everyday use. The highly flexible 28 AWG leads with their 40-strand copper conductors are designed for clean, stable signal flow without putting mechanical stress on the connections. This way, contacts remain precise and secure even with frequent adjustments.

The symmetrical design of the Ortofon Standard Lead Wire Set ensures that all four leads are constructed identically, giving you a structured, easy-to-follow setup. Gold-plated 1.2 mm connectors at both ends minimize contact resistance and provide long-term protection against corrosion, which really makes a difference in the highly resolving phono signal path.

From experience, we know how sensitive the path from cartridge to the rest of the signal chain is. With the Ortofon Standard Lead Wire Set, you equip this critical link with proven Ortofon quality and create a solid foundation for long-term, relaxed enjoyment of your vinyl.

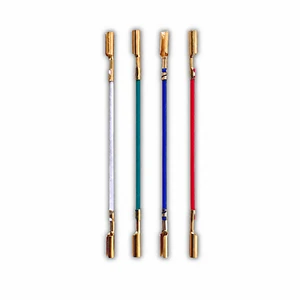

Ortofon Standard Lead Wire Set – Features:

• Ortofon Standard Lead Wire Set for connecting cartridge and headshell in a turntable
• Highly flexible 28 AWG leads with 40-strand copper conductors for low-loss signal transmission
• Symmetrical conductor design with gold-plated 1.2 mm connectors at both ends
• Includes: four color-coded leads for left and right channels
• Compatible with most headshells and cartridges with standard contact pins
• Cable length per lead: approx. 3.5 cm (35 mm)

The new stylus features
Replacement stylus offers a tactile feedback when seating, indicating a snug and secure fit, while a cut-out area in the front allows for far more accurate needle drops.

• Larger, wider and more robust stylus body
• Easier to grip and handle
• Better fix by metal spring
• Tactile feedback of correct mount
• Large stylus viewing cut‐out

Output voltage at 1000Hz, 5cm/sec. - 10 mV
Channel balance at 1kHz - 1 dB
Channel separation at 1kHz - 22 dB
Channel separation at 15 kHz - 15 dB
Frequency range at -3dB - 20-18.000 Hz
Tracking ability at 315 Hz at recommmended tracking force - 120 μm
Compliance, dynamic lateral - 14 μm/m N
Stylus type - Spherical R 18 μm

Tracking force range - 3 - 5 g
Tracking force recommended - 4 g
Recommended exclusively for Concorde MkII SCRATCH

Attention: Matches the new Concorde MkII only!

The 2M Series is developed in conjunction with the Danish Industrial designer Møller Jensen Design – the same designer who designed the award winning MC Jubilee and Kontrapunkt series. Inspired by the facets of a diamond, whose contours gracefully trace the grooves on a record’s surface, the 2M’s handsome elegance establishes a great combination of form and functionality.

The name 2M was selected from among several ideas. We wanted a modern name that would be easy to pronounce and remember, and therefore an alphanumerical name was chosen. 2M means MM, which is the abbreviation for moving magnet.

Of course the 2M isn’t just another pretty face. It has been engineered to the highest standards and is congruent with Ortofon’s unrelenting commitment to providing the most precise and accurate reproduction possible without coloration.

The 2M series of cartridges features Ortofon’s trademark split pole pins, an invention that enables moving magnet cartridges to have a flat frequency response, as with a moving coil cartridge. Split pole pins were invented by Ortofon, and were originally presented in the 500 series and Super OM series.

We have optimized the design for ease of mounting the cartridge, and the weight and size to fit the most common turntables on the market today. The 2M Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps.

2M Blue features:

• an improved engine, which provides an increased output of 5.5mV and an optimized sound reproduction and a high level of sonic accuracy

• Nude Elliptical diamond and split pole pins with a copper wire

• The cartridge body is manufactured from Hopelex, an environment-friendly material which ensures high rigidity while eliminating unwanted resonances

2M Blue adds more dynamics and resolution, sounds more open and reproduces more details than 2M Red

Output voltage at 1000 Hz, 5cm/sec. - 5,5 mV
Channel balance at 1 kHz - 1,5 dB
Channel separation at 1 kHz - 25 dB
Channel separation at 15 kHz - 15 dB
Frequency range at - 3dB - 20-25.000 Hz
Frequency response - 20-20.000 Hz + 2 / - 1 dB
Tracking ability at 315Hz at recommended tracking force - 80 µm
Compliance, dynamic, lateral - 20 µm/mN
Stylus type - Nude Elliptical
Stylus tip radius - r/R 8/18 µm
Tracking force range - 1,6-2,0g (16-20 mN)
Tracking force, recommended - 1,8 g (18 mN)
Tracking angle - 20°
Internal impedance, DC resistance - 1,3 kOhm
Internal inductance - 700 mH
Recommended load resistance - 47 kOhm
Recommended load capacitance - 150-300 pF
Cartridge colour, body/stylus - Black/Blue
Cartridge weight - 7,2 g
Replacement stylus unit - 2M Blue (interchangeable with 2M Red and 2M Silver)

Each of the 2M Series cartridges has its own individual sonic expression, and all five models together represent the ensemble of five classic variations:

• 2M Mono SE, 2M Mono and 2M 78 are a true mono cartridges for playing mono vinyl records
• 2M Red is an all-purpose cartridge that delivers open, dynamic sound with a slight touch of warmth
• 2M Blue adds more dynamics and resolution, sounds more open and reproduces more details
• 2M Bronze adds even more details and resolution but in a very evenhanded way that pays respect to all elements
• 2M Black is the best of everything, true to the groove with resolution and accurate insight into each recording

Introducing Concorde Music
Developed by music lovers, for music lovers, the Concorde Music cartridges blend premium performance with an iconic design.
Concorde Music, not just a cartridge, but a dedication to the profound impact music has on our lives, turning every listening session
into a captivating journey.

Possibly the world’s most iconic cartridge design
Building upon a rich legacy which began when we launched the original Concorde, the Concorde Music holds a storied history as
one of the most famous cartridges in the world of audio. Originally developed as a solution to the challenge of easy mounting on a
tonearm without screws or wires, the Concorde's unique design earned the Danish Industrial Design Award and became an icon in
the audio industry.

Features:
• Diamond: Each Concorde Music stylus features a diamond polished to the highest standards of the industry. Ranging from
a bonded Elliptical diamond on Concorde Music Red, to a Nude Shibata diamond on Concorde Music Black LVB 250.
• Cantilever: All Concorde Music models have a premium or high-end cantilever. The cantilever material is either aluminium
or boron for the best possible transmission of the vinyl record groove modulations picked up by the diamonds.
• Suspension: Exclusive Ortofon rubber compounds are used for the stylus suspensions, all carefully produced at the in_x0002_house own rubber production, and developed by the research and engineering team at Ortofon for brilliant performance.
• Coil system: Silver-pated oxygen free copper is chosen for the quad-coil system together with four Ortofon split pole pins
delivering a 6 mV output of dynamic, lifelike sound with an exceptional clarity and fidelity, capturing every detail.
• Upgradeability: All Concorde Music styli are compatible with all Concorde Music cartridges. An upgrade path is possible
through the entire series of Concorde Music cartridges, enabling upgrades from Concorde Music Red to Black LVB 250.
• Tool-free installation: Installing a Concorde Music cartridge on a turntable is easy and straightforward, no tools required
making it hassle free and convenient for all users.

It is all about the music
Concorde Music stands as an icon of design and musical dedication, inviting everyone to elevate their journey with the level of
accuracy in sound which has become characteristic for every Ortofon cartridge. Tailored for music lovers, incorporating a
straightforward installation, premium sound, and a timeless design. Concorde Music stands for a commitment to musicality.

Unique in-house rubber production a crucially important and vital part of a phono cartridge overall performance is the stylus
rubber suspension. Ortofon develops exclusive rubber compounds and produce the rubber suspensions and dampers in-house.

Ortofon quad-coil generating system with split pole pins in Concorde Music results in an exceptional channel balance and channel
separation, delivering a precise and dynamic sound image.

Ortofon, we love music!

Stability & Ease of Use

Built for reliability and ease of use, the Concorde 5S is a great choice for everyday vinyl enjoyment. Its spherical diamond stylus provides stable tracking and requires less precision during setup, making it ideal for those who want a hassle-free listening experience.

Features:
• No-tool installation – easily mounts onto the tonearm for a quick setup
• Spherical stylus – offers reliable performance and durability
• Reliable and consistent performance – ideal for casual and frequent listening.

Concorde 5 Series

A Smart Choice for Vinyl Enthusiasts
While the Concorde Music series represents Ortofon’s most advanced design, the Concorde 5 Series stays true to the classic Concorde MkI legacy, offering a proven, no-fuss solution for those who want a trusted sound experience at an excellent value.

Whether you seek precision and detail or durability and smooth tracking, the Concorde 5 Series makes high-quality vinyl playback more accessible than ever - all while preserving the iconic Concorde design that audiophiles and DJs have trusted for decades.

Enhance your listening experience

Future Proof - Upgrade Path
The Concorde 5 models offer a seamless upgrade path as they are fully compatible with Stylus 5S, 5E, 10, 20, 30 and 40. Upgrading the stylus allows you to enhance your listening experience and achieve even higher performance.

No-tool installation

Compatibility
Mounting the Concorde 5 cartridges to your turntable is simple and user-friendly - no additional tools are needed, ensuring a smooth setup experience. Its built-in bayonet mount allows seamless compatibility with any S-shaped tonearm.

Specifications:
• Channel balance at 1 kHz: < 2 dB
• Output voltage at 1 kHz, 5cm/sec: 4.5 mV
• Channel separation at 1 kHz: > 20 dB
• Frequency response 20 Hz - 20 kHz: +/- 3 dB
• Compliance, dynamic, lateral: 20 µm/mN
• Cantilever material: Aluminium
• Stylus type: Spherical Diamond
• Stylus tip radius: R 18 µm
• Tracking force, recommended: 1.8 grams
• Internal impedance, DC resistance: 750 Ω
• Coil wire material: OFC
• Cartridge colour: Black
• Cartridge weight: 18.5 grams
• Recommended load resistance: 47 kΩ

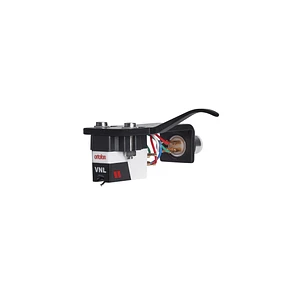

VNL TRIX Premounted on SH-2 Headshell

VNL TRIX AND VNL DANCE - Precision tools for professional DJs

Ortofon follows up with the brand new VNL TRIX and VNL DANCE, the latest additions to the VNL series. Robustly built, tuned for performance, and stage-ready. The VNL TRIX and VNL DANCE cartridges are perfect for DJs who demand both high output and precision.

LOUD. CLEAR. POWERFUL. With an output of a full 10 mV, these systems deliver high levels and crystal-clear signals for any setup – from underground raves to big stages. Louder than ever, they bring pure energy to the system.

VNL TRIX With a spherical stylus on a sturdy aluminum stylus carrier and Ortofon's exclusive rubber suspension, the VNL TRIX is built for tough use. The fluorescent white stylus makes cueing easier, and the high-quality tracking ability keeps the system safely in the groove – even during heavy scratching and back cueing.

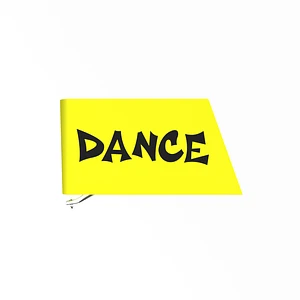

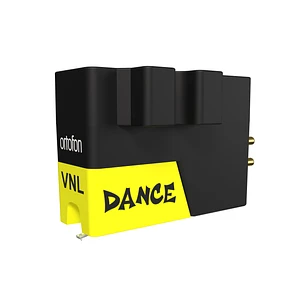

VNL DANCE Same rugged construction, but with an elliptical stylus that delivers more precise detail and fuller sound. The neon yellow, fluorescent stylus glows under UV light and adds a visual exclamation point to your setup. TRIX and DANCE are fully VNL-compatible, so you can swap styluses depending on your mood and set.

KEY FEATURES
• 10 mV output voltage – LOUD. CLEAR. POWERFUL.
• Extreme tracking accuracy – Ideal for scratching and back cueing.
• Replaceable stylus – Maximum flexibility for every set.
• Fluorescent stylus – Markings visible even in the dark/under UV light.
• Sound on a new level – Rich sound with clarity and punch in every genre.

Output voltage: 10 mV
Tracking ability: 100 μm
Stylus carrier material: Aluminum
Stylus type: Spherical
Stylus tip radius: R 18 μm
Stylus suspension: Ortofon exclusive
Coil system & wire: Quadruple coils/OFC
Channel separation at 1 kHz: 22 dB
Frequency response 20 Hz–20 kHz: +/-3 dB
Dynamic lateral compliance: 12 μm/mN
Recommended tracking force: 4.0 g
Recommended load resistance: 47 KΩ
Cartridge weight: 7 g

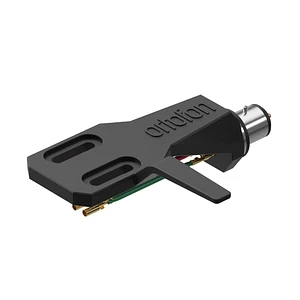

Ortofon is pleased to introduce the SH-2 BLACK – a universal headshell designed for stability, durability, and seamless integration with a wide range of turntables. It is designed to be so versatile that it works equally well for everyday vinyl playback and dedicated listening sessions.

Weighing only 9.3 grams, the SH-2 BLACK is optimized for turntables with S- or J-shaped tonearms and standard SME bayonet connectors. This universal connector ensures effortless integration with a wide range of turntables and tonearms.

The SH-2 BLACK features a finger lift with the same form factor as Ortofon's latest Concorde cartridges, offering first-class handling and a harmonious design for users who appreciate both aesthetics and quality.

Made from a glass fiber-reinforced copolymer, the SH-2 BLACK combines low weight with exceptional rigidity and low sensitivity to external vibrations. This robust material choice increases playback stability and preserves the integrity of your vinyl sound.

Whether you are upgrading your existing setup or putting together a new system, the Ortofon SH-2 BLACK headshell offers a reliable, high-quality solution for analog playback at the highest level.

KEY FEATURES
• Compatibility – Fits most turntables with S- or J-shaped tonearms with bayonet mounts.
• Stability – Glass fiber reinforced copolymer for durability and resonance control.
• Non-conductive – Prevents ground loops via the headshell material.
• Improved control – Raised finger lift for easy, precise handling of the cartridge.
• Pre-assembled headshell cables – Color-coded with gold-plated contacts for better signal transmission.

Ortofon is pleased to introduce the SH-2 BLACK – a universal headshell designed for stability, durability, and seamless integration with a wide range of turntables. It is designed to be so versatile that it works equally well for everyday vinyl playback and dedicated listening sessions.

Weighing only 9.3 grams, the SH-2 BLACK is optimized for turntables with S- or J-shaped tonearms and standard SME bayonet connectors. This universal connector ensures effortless integration with a wide range of turntables and tonearms.

The SH-2 BLACK features a finger lift with the same form factor as Ortofon's latest Concorde cartridges, offering first-class handling and a harmonious design for users who appreciate both aesthetics and quality.

Made from a glass fiber-reinforced copolymer, the SH-2 BLACK combines low weight with exceptional rigidity and low sensitivity to external vibrations. This robust material choice increases playback stability and preserves the integrity of your vinyl sound.

Whether you are upgrading your existing setup or putting together a new system, the Ortofon SH-2 BLACK headshell offers a reliable, high-quality solution for analog playback at the highest level.

KEY FEATURES
• Compatibility – Fits most turntables with S- or J-shaped tonearms with bayonet mounts.
• Stability – Glass fiber reinforced copolymer for durability and resonance control.
• Non-conductive – Prevents ground loops via the headshell material.
• Improved control – Raised finger lift for easy, precise handling of the cartridge.
• Pre-assembled headshell cables – Color-coded with gold-plated contacts for better signal transmission.

VNL TRIX Replacement Stylus

VNL TRIX With a spherical stylus on a sturdy aluminum stylus holder and Ortofon's exclusive rubber suspension, the VNL TRIX is built for tough use. The fluorescent white stylus makes cueing easy, and the high-quality tracking keeps the system safely in the groove – even during heavy scratching and back-cueing.
TRIX and DANCE are fully VNL-compatible, so you can swap styluses depending on your mood and set.

KEY FEATURES
• 10 mV output voltage – LOUD. CLEAR. POWERFUL.
• Extreme tracking stability – Ideal for scratching and back cueing.
• Interchangeable stylus – Maximum flexibility for every set.
• Fluorescent stylus – Markings visible even in the dark/under UV light.
• Sound on a new level – Rich sound with clarity and punch in every genre.

Output voltage: 10 mV
Tracking ability: 100 μm
Stylus carrier material: Aluminum
Stylus type: Spherical
Stylus tip radius: R 18 μm
Stylus suspension: Ortofon exclusive
Coil system & wire: Quadruple coils/OFC
Channel separation at 1 kHz: 22 dB
Frequency response 20 Hz–20 kHz: +/-3 dB
Dynamic lateral compliance: 12 μm/mN
Recommended tracking force: 4.0 g
Recommended load resistance: 47 KΩ
Cartridge weight: 7 g

VNL TRIX AND VNL DANCE - Precision tools for professional DJs

Ortofon follows up with the brand new VNL TRIX and VNL DANCE, the latest additions to the VNL series. Robustly built, tuned for performance, and stage-ready. The VNL TRIX and VNL DANCE cartridges are perfect for DJs who demand both high output and precision.

LOUD. CLEAR. POWERFUL. With an output of a full 10 mV, these systems deliver high levels and crystal-clear signals for any setup – from underground raves to big stages. Louder than ever, they bring pure energy to the system.

VNL TRIX With a spherical stylus on a sturdy aluminum stylus carrier and Ortofon's exclusive rubber suspension, the VNL TRIX is built for tough use. The fluorescent white stylus makes cueing easier, and the high-quality tracking ability keeps the system safely in the groove – even during heavy scratching and back cueing.

VNL DANCE Same rugged construction, but with an elliptical stylus that delivers more precise detail and fuller sound. The neon yellow, fluorescent stylus glows under UV light and adds a visual exclamation point to your setup. TRIX and DANCE are fully VNL-compatible, so you can swap styluses depending on your mood and set.

KEY FEATURES
• 10 mV output voltage – LOUD. CLEAR. POWERFUL.
• Extreme tracking accuracy – Ideal for scratching and back cueing.
• Replaceable stylus – Maximum flexibility for every set.
• Fluorescent stylus – Markings visible even in the dark/under UV light.
• Sound on a new level – Rich sound with clarity and punch in every genre.

Output voltage: 10 mV
Tracking ability: 100 μm
Stylus carrier material: Aluminum
Stylus type: Spherical
Stylus tip radius: R 18 μm
Stylus suspension: Ortofon exclusive
Coil system & wire: Quadruple coils/OFC
Channel separation at 1 kHz: 22 dB
Frequency response 20 Hz–20 kHz: +/-3 dB
Dynamic lateral compliance: 12 μm/mN
Recommended tracking force: 4.0 g
Recommended load resistance: 47 KΩ
Cartridge weight: 7 g

VNL TRIX AND VNL DANCE - Precision tools for professional DJs

Ortofon follows up with the brand new VNL TRIX and VNL DANCE, the latest additions to the VNL series. Robustly built, tuned for performance, and stage-ready. The VNL TRIX and VNL DANCE cartridges are perfect for DJs who demand both high output and precision.

LOUD. CLEAR. POWERFUL. With an output of a full 10 mV, these systems deliver high levels and crystal-clear signals for any setup – from underground raves to big stages. Louder than ever, they bring pure energy to the system.

VNL TRIX With a spherical stylus on a sturdy aluminum stylus carrier and Ortofon's exclusive rubber suspension, the VNL TRIX is built for tough use. The fluorescent white stylus makes cueing easier, and the high-quality tracking ability keeps the system safely in the groove – even during heavy scratching and back cueing.

VNL DANCE Same rugged construction, but with an elliptical stylus that delivers more precise detail and fuller sound. The neon yellow, fluorescent stylus glows under UV light and adds a visual exclamation point to your setup. TRIX and DANCE are fully VNL-compatible, so you can swap styluses depending on your mood and set.

KEY FEATURES
• 10 mV output voltage – LOUD. CLEAR. POWERFUL.
• Extreme tracking accuracy – Ideal for scratching and back cueing.
• Replaceable stylus – Maximum flexibility for every set.
• Fluorescent stylus – Markings visible even in the dark/under UV light.
• Sound on a new level – Rich sound with clarity and punch in every genre.

Output voltage: 10 mV
Tracking ability: 100 μm
Stylus carrier material: Aluminum
Stylus type: Elliptical
Stylus tip radius: r/R 8/18 μm
Stylus suspension: Ortofon exclusive
Coil system & wire: Quadruple coils/OFC
Channel separation at 1 kHz: 22 dB
Frequency response 20 Hz–20 kHz: +/-3 dB
Dynamic lateral compliance: 12 μm/mN
Recommended tracking force: 4.0 g
Recommended load resistance: 47 KΩ
Cartridge weight: 7 g

VNL DANCE Premounted on SH-2

VNL TRIX AND VNL DANCE - Precision tools for professional DJs

Ortofon follows up with the brand new VNL TRIX and VNL DANCE, the latest additions to the VNL series. Robustly built, tuned for performance, and stage-ready. The VNL TRIX and VNL DANCE cartridges are perfect for DJs who demand both high output and precision.

LOUD. CLEAR. POWERFUL. With an output of a full 10 mV, these systems deliver high levels and crystal-clear signals for any setup – from underground raves to big stages. Louder than ever, they bring pure energy to the system.

VNL TRIX With a spherical stylus on a sturdy aluminum stylus carrier and Ortofon's exclusive rubber suspension, the VNL TRIX is built for tough use. The fluorescent white stylus makes cueing easier, and the high-quality tracking ability keeps the system safely in the groove – even during heavy scratching and back cueing.

VNL DANCE Same rugged construction, but with an elliptical stylus that delivers more precise detail and fuller sound. The neon yellow, fluorescent stylus glows under UV light and adds a visual exclamation point to your setup. TRIX and DANCE are fully VNL-compatible, so you can swap styluses depending on your mood and set.

KEY FEATURES
• 10 mV output voltage – LOUD. CLEAR. POWERFUL.
• Extreme tracking accuracy – Ideal for scratching and back cueing.
• Replaceable stylus – Maximum flexibility for every set.
• Fluorescent stylus – Markings visible even in the dark/under UV light.
• Sound on a new level – Rich sound with clarity and punch in every genre.

Output voltage: 10 mV
Tracking ability: 100 μm
Stylus carrier material: Aluminum
Stylus type: Elliptical
Stylus tip radius: r/R 8/18 μm
Stylus suspension: Ortofon exclusive
Coil system & wire: Quadruple coils/OFC
Channel separation at 1 kHz: 22 dB
Frequency response 20 Hz–20 kHz: +/-3 dB
Dynamic lateral compliance: 12 μm/mN
Recommended tracking force: 4.0 g
Recommended load resistance: 47 KΩ
Cartridge weight: 7 g

Ortofon is pleased to introduce the SH-2 BLACK – a universal headshell designed for stability, durability, and seamless integration with a wide range of turntables. It is designed to be so versatile that it works equally well for everyday vinyl playback and dedicated listening sessions.

Weighing only 9.3 grams, the SH-2 BLACK is optimized for turntables with S- or J-shaped tonearms and standard SME bayonet connectors. This universal connector ensures effortless integration with a wide range of turntables and tonearms.

The SH-2 BLACK features a finger lift with the same form factor as Ortofon's latest Concorde cartridges, offering first-class handling and a harmonious design for users who appreciate both aesthetics and quality.

Made from a glass fiber-reinforced copolymer, the SH-2 BLACK combines low weight with exceptional rigidity and low sensitivity to external vibrations. This robust material choice increases playback stability and preserves the integrity of your vinyl sound.

Whether you are upgrading your existing setup or putting together a new system, the Ortofon SH-2 BLACK headshell offers a reliable, high-quality solution for analog playback at the highest level.

KEY FEATURES
• Compatibility – Fits most turntables with S- or J-shaped tonearms with bayonet mounts.
• Stability – Glass fiber reinforced copolymer for durability and resonance control.
• Non-conductive – Prevents ground loops via the headshell material.
• Improved control – Raised finger lift for easy, precise handling of the cartridge.
• Pre-assembled headshell cables – Color-coded with gold-plated contacts for better signal transmission.

The MC X Series combines advanced engineering and the finest materials to deliver a sound experience of remarkable clarity, depth, and precision. Designed for those who demand nothing less than excellence, the MC X Series sets a new benchmark in MC cartridge design, pushing premium Moving Coil technology to unprecedented levels of performance and setting a new standard in high-end vinyl reproduction.

MC X10 lays the foundation for high-fidelity sound. Its refined elliptical diamond stylus delivers clarity and precision, bringing your records to life with stunning detail. It’s the perfect starting point for an exceptional audio journey.

Built around a newly developed, honeycomb-structured stainless-steel core using MIM (Metal Injection Molding) technology, the MC X ensures exceptional mechanical stability - laying the foundation for precise and accurate sound reproduction.

Its silhouette is refined, its sound even more so.
With pure silver coils, custom rubber compounds, and an optimized magnet system, every component has been carefully selected for one reason: to let the music speak, uncolored and alive.

A New Benchmark in Analog Perfection
In the world of vinyl playback, the cartridge is where the journey begins. A pivotal point where music rises from the groove and transforms into immersive soundscapes. With the MC X Series, Ortofon sets a new benchmark in MC cartridge design, pushing premium Moving Coil technology to unprecedented levels of performance.

Exceptional Signal Clarity - Pure Silver Coil System
All MC X cartridges feature coils wound with high-purity silver wire. The use of premium materials is to ensure exceptional signal clarity, delivering sound with unmatched precision and preserving every detail without interference.

Maximum Magnetic Efficiency - Magnet system
The MC X Series introduces a newly developed magnet system with a one-piece pole cylinder integrated into a rear magnet yoke. Engineered for maximum magnetic efficiency and paired with pure silver coils, this configuration ensures a clean, powerful signal path that elevates overall performance.

Precision Engineering for Unmatched Stability - Custom-Developed Rubber Dampers
In-house produced and developed rubber compounds form the core of the MC X Series’ mechanical damping system. Rubber dampers are essential for controlling the physical movement of the coils, maintaining stability, minimizing unwanted vibrations, and enabling precise coil motion. The result is superior tracking, reduced distortion, and musical accuracy.

MIM-Molded Honeycomb-Structured Core
Experience the depth.
Hear every detail.
At the core of the MC X Series is an advanced honeycomb-structured stainless-steel frame, created using Metal Injection Molding (MIM) technology. This refined construction ensures superior mechanical stability, providing an ideal foundation for precise and accurate sound reproduction.
After molding and sintering, a Physical Vapor Deposition (PVD) surface treatment is applied to enhance surface appearance and maintain material integrity over time.

Modern Elegance with Distinctive Design - The Shape of Sound
The MC X Series embodies modern elegance with a distinctive design that seamlessly complements the tonearm. From afar, its silhouette speaks of minimalist refinement; up close, its intricate detailing reveals craftsmanship at every level. True to Ortofon’s signature aesthetic, it’s a sophisticated fusion of form and function.

Specifications:
• Channel balance at 1 kHz: 0.5 dB
• Output voltage at 1 kHz, 5cm/sec: 0.4 mV
• Channel separation at 1 kHz: 24 dB
• Frequency response 20 Hz - 20 kHz: +/-2 dB
• Compliance, dynamic, lateral: 13 μm/mN
• Cantilever material: Aluminium
• Stylus type: Elliptical
• Stylus tip radius: r/R 8/18 μm
• Stylus suspensions: Ortofon exclusive
• Coil system: Quad coils
• Tracking force, recommended: 2.0 grams
• Internal impedance, DC resistance: 6 Ω
• Coil wire material: High-purity silver
• Cartridge weight: 8.6 grams
• Recommended load resistance: > 50 Ω

Precision & Clarity

The Concorde 5E delivers a refined and detailed listening experience, making it an ideal choice for those who appreciate high-fidelity sound without unnecessary complexity. Equipped with an elliptical diamond stylus, it ensures a premium groove contact, reduced distortion and reveals fine nuances in your records.

Features:
• No-tool installation – easily mounts onto the tonearm for a quick setup.
• Elliptical stylus – improves tracking and enhances detail in the music.
• Balanced and natural sound – perfect for music lovers seeking clarity and precision.

Concorde 5 Series

A Smart Choice for Vinyl Enthusiasts
While the Concorde Music series represents Ortofon’s most advanced design, the Concorde 5 Series stays true to the classic Concorde MkI legacy, offering a proven, no-fuss solution for those who want a trusted sound experience at an excellent value.

Whether you seek precision and detail or durability and smooth tracking, the Concorde 5 Series makes high-quality vinyl playback more accessible than ever - all while preserving the iconic Concorde design that audiophiles and DJs have trusted for decades.

Enhance your listening experience

Future Proof - Upgrade Path
The Concorde 5 models offer a seamless upgrade path as they are fully compatible with Stylus 5S, 5E, 10, 20, 30 and 40. Upgrading the stylus allows you to enhance your listening experience and achieve even higher performance.

No-tool installation

Compatibility
Mounting the Concorde 5 cartridges to your turntable is simple and user-friendly - no additional tools are needed, ensuring a smooth setup experience. Its built-in bayonet mount allows seamless compatibility with any S-shaped tonearm.

Specifications:
• Channel balance at 1 kHz: < 2 dB
• Output voltage at 1 kHz, 5cm/sec: 4 mV
• Channel separation at 1 kHz: > 20 dB
• Frequency response 20 Hz - 20 kHz: +/- 3 dB
• Compliance, dynamic, lateral: 20 µm/mN
• Cantilever material: Aluminium
• Stylus type: Elliptical Diamond
• Stylus tip radius: r/R 8/18 µm
• Tracking force, recommended: 1.8 grams
• Internal impedance, DC resistance: 750 Ω
• Coil wire material: OFC
• Cartridge colour: Black
• Cartridge weight: 18.5 grams
• Recommended load resistance: 47 kΩ

Introducing Concorde Music
Developed by music lovers, for music lovers, the Concorde Music cartridges blend premium performance with an iconic design.
Concorde Music, not just a cartridge, but a dedication to the profound impact music has on our lives, turning every listening session
into a captivating journey.

Possibly the world’s most iconic cartridge design
Building upon a rich legacy which began when we launched the original Concorde, the Concorde Music holds a storied history as
one of the most famous cartridges in the world of audio. Originally developed as a solution to the challenge of easy mounting on a
tonearm without screws or wires, the Concorde's unique design earned the Danish Industrial Design Award and became an icon in
the audio industry.

Features:
• Diamond: Each Concorde Music stylus features a diamond polished to the highest standards of the industry. Ranging from
a bonded Elliptical diamond on Concorde Music Red, to a Nude Shibata diamond on Concorde Music Black LVB 250.
• Cantilever: All Concorde Music models have a premium or high-end cantilever. The cantilever material is either aluminium
or boron for the best possible transmission of the vinyl record groove modulations picked up by the diamonds.
• Suspension: Exclusive Ortofon rubber compounds are used for the stylus suspensions, all carefully produced at the in_x0002_house own rubber production, and developed by the research and engineering team at Ortofon for brilliant performance.
• Coil system: Silver-pated oxygen free copper is chosen for the quad-coil system together with four Ortofon split pole pins
delivering a 6 mV output of dynamic, lifelike sound with an exceptional clarity and fidelity, capturing every detail.
• Upgradeability: All Concorde Music styli are compatible with all Concorde Music cartridges. An upgrade path is possible
through the entire series of Concorde Music cartridges, enabling upgrades from Concorde Music Red to Black LVB 250.
• Tool-free installation: Installing a Concorde Music cartridge on a turntable is easy and straightforward, no tools required
making it hassle free and convenient for all users.

It is all about the music
Concorde Music stands as an icon of design and musical dedication, inviting everyone to elevate their journey with the level of
accuracy in sound which has become characteristic for every Ortofon cartridge. Tailored for music lovers, incorporating a
straightforward installation, premium sound, and a timeless design. Concorde Music stands for a commitment to musicality.

Unique in-house rubber production a crucially important and vital part of a phono cartridge overall performance is the stylus
rubber suspension. Ortofon develops exclusive rubber compounds and produce the rubber suspensions and dampers in-house.

Ortofon quad-coil generating system with split pole pins in Concorde Music results in an exceptional channel balance and channel
separation, delivering a precise and dynamic sound image.

Ortofon, we love music!

Introducing Concorde Music
Developed by music lovers, for music lovers, the Concorde Music cartridges blend premium performance with an iconic design.
Concorde Music, not just a cartridge, but a dedication to the profound impact music has on our lives, turning every listening session
into a captivating journey.

Possibly the world’s most iconic cartridge design
Building upon a rich legacy which began when we launched the original Concorde, the Concorde Music holds a storied history as
one of the most famous cartridges in the world of audio. Originally developed as a solution to the challenge of easy mounting on a
tonearm without screws or wires, the Concorde's unique design earned the Danish Industrial Design Award and became an icon in
the audio industry.

Features:
• Diamond: Each Concorde Music stylus features a diamond polished to the highest standards of the industry. Ranging from
a bonded Elliptical diamond on Concorde Music Red, to a Nude Shibata diamond on Concorde Music Black LVB 250.
• Cantilever: All Concorde Music models have a premium or high-end cantilever. The cantilever material is either aluminium
or boron for the best possible transmission of the vinyl record groove modulations picked up by the diamonds.
• Suspension: Exclusive Ortofon rubber compounds are used for the stylus suspensions, all carefully produced at the in_x0002_house own rubber production, and developed by the research and engineering team at Ortofon for brilliant performance.
• Coil system: Silver-pated oxygen free copper is chosen for the quad-coil system together with four Ortofon split pole pins
delivering a 6 mV output of dynamic, lifelike sound with an exceptional clarity and fidelity, capturing every detail.
• Upgradeability: All Concorde Music styli are compatible with all Concorde Music cartridges. An upgrade path is possible
through the entire series of Concorde Music cartridges, enabling upgrades from Concorde Music Red to Black LVB 250.
• Tool-free installation: Installing a Concorde Music cartridge on a turntable is easy and straightforward, no tools required
making it hassle free and convenient for all users.

It is all about the music
Concorde Music stands as an icon of design and musical dedication, inviting everyone to elevate their journey with the level of
accuracy in sound which has become characteristic for every Ortofon cartridge. Tailored for music lovers, incorporating a
straightforward installation, premium sound, and a timeless design. Concorde Music stands for a commitment to musicality.

Unique in-house rubber production a crucially important and vital part of a phono cartridge overall performance is the stylus
rubber suspension. Ortofon develops exclusive rubber compounds and produce the rubber suspensions and dampers in-house.

Ortofon quad-coil generating system with split pole pins in Concorde Music results in an exceptional channel balance and channel
separation, delivering a precise and dynamic sound image.

Ortofon, we love music!

2MR: the newest addition to the renowned 2M Series
Ortofon 2MR features a specially designed cartridge housing tailored for turntables and tonearms like Rega matching their requirement for low-form factor cartridges. With its narrow cartridge housing, it seamlessly integrates without a need for modifications or spacers under the tonearm, enabling quick and easy mounting with just two screws. Ortofon 2MR cartridges features unique to Ortofon technologies like: High-performance quad coil motor system with split pole pins, Proprietary Ortofon premium and high-end rubber dampers plus full compatibility with the Ortofon 2M series styli.

Authentic sound reproduction
2MR continues the 2M Series' commitment to authentic sound reproduction.
A high-performance motor system featuring quad coils and split pole pins minimizes eddy current losses, enhancing channel balance and accuracy.
This innovation results in a clean, detailed, and true-to-life sound, faithfully capturing the nuances of your cherished vinyl collection.

More than just a cartridge
2MR cartridge are for those who value an authentic immersive listening experience when listening to their music. 2MR lets you rediscover your vinyl collection with enhanced clarity and precision.
The 2MR maintains the hallmark of interchangeability, allowing you to explore your records in greater depth and detail. The seamless transition between stylus profiles lets you tailor your listening experience, ensuring every note is heard with unparalleled accuracy and emotion. The 2MR series empowers you to explore your records like never before, allowing you to savor every moment of your favorite music.
The 2MR lets you rediscover your vinyl collection with enhanced clarity and precision.

2MR cartridge key features:
• Slimline cartridge body effectively eliminates the need for tonearm spacers, shims or modifications on turntables needing a low form factor cartridge.
• High-performance motor system incorporating unique to Ortofon quad coils with split pole pins, delivering a clean detailed and true-to-life sound.
• 100% compatibility with the 2M styli Ortofon 2MR use the well-known 2M styli.
• Standard half inch mounting quick and easy mounting on the tonearms with just two screws.
• Full range setup 2MR ranges from Mono to Premium: 2MR Red to High-end: 2MR Black LVB 250

Step into the music with the 2M Red
With the 2M Red you will hear the music come to life on its own terms. It is like taking a step into music itself. This is our entry-level cartridge in the series, but what an entry.

Featues:
The 2M Red features a tipped Elliptical diamond and split pole pins with a copper wire.
The engine provides an increased output of 5.5 mV and an optimized sound reproduction and a high level of sonic accuracy.

Designed for easy mounting of the cartridge, and for the weight and size to fit the most common turntables on the market today. The 2M Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps.

2M Red delivers an open, dynamic sound with a slight touch of warmth.

Technical data:
• Output voltage at 1000 Hz, 5cm/sec. - 5.5 mV
• Channel balance at 1 kHz - 1.5 dB
• Channel separation at 1 kHz - 22 dB
• Channel separation at 15 kHz - 15 dB
• Frequency response - 20-20.000 Hz + 3 / - 1 dB
• Tracking ability at 315Hz at recommended tracking force - 70 µm
• Compliance, dynamic, lateral - 20 µm/mN
• Stylus type - Elliptical
• Stylus tip radius - r/R 8/18 µm
• Tracking force range - 1.6-2.0 g (16-20 mN)
• Tracking force, recommended - 1.8 g (18 mN)
• Tracking angle - 20°
• Internal impedance, DC resistance - 1.3 kOhm
• Internal inductance - 700 mH
• Recommended load resistance - 47 kOhm
• Recommended load capacitance - 150-300 pF
• Cartridge colour, body/stylus - Black/Red
• 2MR cartridge weight - 6 g
• 2M and 2M Verso cartridges weight - 7.2 g
• 2M Premounted cartridge weight - 16.7 g

Replacement stylus unit - 2M Red (interchangeable with 2M Blue and 2M Silver)

Stylus lifetime:
with proper care we find that up to 1000 hours is possible without degradation of performance.

2M Series styli interchangeability:
The 2M Series' engines, coils and magnets configurations are not identical: Red and Blue are identical, so are the Bronze and Black and so are the true mono variants 2M Mono and 2M 78. Likewise, 2M series styli are interchangeable within the below combinations:
- 2M Red, 2M Blue and 2M Silver
- 2M Bronze and 2M Black
- 2M Mono and 2M 78

Introducing Concorde Music
Developed by music lovers, for music lovers, the Concorde Music cartridges blend premium performance with an iconic design.
Concorde Music, not just a cartridge, but a dedication to the profound impact music has on our lives, turning every listening session
into a captivating journey.

Possibly the world’s most iconic cartridge design
Building upon a rich legacy which began when we launched the original Concorde, the Concorde Music holds a storied history as
one of the most famous cartridges in the world of audio. Originally developed as a solution to the challenge of easy mounting on a
tonearm without screws or wires, the Concorde's unique design earned the Danish Industrial Design Award and became an icon in
the audio industry.

Features:
• Diamond: Each Concorde Music stylus features a diamond polished to the highest standards of the industry. Ranging from
a bonded Elliptical diamond on Concorde Music Red, to a Nude Shibata diamond on Concorde Music Black LVB 250.
• Cantilever: All Concorde Music models have a premium or high-end cantilever. The cantilever material is either aluminium
or boron for the best possible transmission of the vinyl record groove modulations picked up by the diamonds.
• Suspension: Exclusive Ortofon rubber compounds are used for the stylus suspensions, all carefully produced at the in_x0002_house own rubber production, and developed by the research and engineering team at Ortofon for brilliant performance.
• Coil system: Silver-pated oxygen free copper is chosen for the quad-coil system together with four Ortofon split pole pins
delivering a 6 mV output of dynamic, lifelike sound with an exceptional clarity and fidelity, capturing every detail.
• Upgradeability: All Concorde Music styli are compatible with all Concorde Music cartridges. An upgrade path is possible
through the entire series of Concorde Music cartridges, enabling upgrades from Concorde Music Red to Black LVB 250.
• Tool-free installation: Installing a Concorde Music cartridge on a turntable is easy and straightforward, no tools required
making it hassle free and convenient for all users.

It is all about the music
Concorde Music stands as an icon of design and musical dedication, inviting everyone to elevate their journey with the level of
accuracy in sound which has become characteristic for every Ortofon cartridge. Tailored for music lovers, incorporating a
straightforward installation, premium sound, and a timeless design. Concorde Music stands for a commitment to musicality.

Unique in-house rubber production a crucially important and vital part of a phono cartridge overall performance is the stylus
rubber suspension. Ortofon develops exclusive rubber compounds and produce the rubber suspensions and dampers in-house.

Ortofon quad-coil generating system with split pole pins in Concorde Music results in an exceptional channel balance and channel
separation, delivering a precise and dynamic sound image.

Ortofon, we love music!

Introducing Concorde Music
Developed by music lovers, for music lovers, the Concorde Music cartridges blend premium performance with an iconic design.
Concorde Music, not just a cartridge, but a dedication to the profound impact music has on our lives, turning every listening session
into a captivating journey.

Possibly the world’s most iconic cartridge design
Building upon a rich legacy which began when we launched the original Concorde, the Concorde Music holds a storied history as
one of the most famous cartridges in the world of audio. Originally developed as a solution to the challenge of easy mounting on a
tonearm without screws or wires, the Concorde's unique design earned the Danish Industrial Design Award and became an icon in
the audio industry.

Features:
• Diamond: Each Concorde Music stylus features a diamond polished to the highest standards of the industry. Ranging from
a bonded Elliptical diamond on Concorde Music Red, to a Nude Shibata diamond on Concorde Music Black LVB 250.
• Cantilever: All Concorde Music models have a premium or high-end cantilever. The cantilever material is either aluminium
or boron for the best possible transmission of the vinyl record groove modulations picked up by the diamonds.
• Suspension: Exclusive Ortofon rubber compounds are used for the stylus suspensions, all carefully produced at the in_x0002_house own rubber production, and developed by the research and engineering team at Ortofon for brilliant performance.
• Coil system: Silver-pated oxygen free copper is chosen for the quad-coil system together with four Ortofon split pole pins
delivering a 6 mV output of dynamic, lifelike sound with an exceptional clarity and fidelity, capturing every detail.
• Upgradeability: All Concorde Music styli are compatible with all Concorde Music cartridges. An upgrade path is possible
through the entire series of Concorde Music cartridges, enabling upgrades from Concorde Music Red to Black LVB 250.
• Tool-free installation: Installing a Concorde Music cartridge on a turntable is easy and straightforward, no tools required
making it hassle free and convenient for all users.

It is all about the music
Concorde Music stands as an icon of design and musical dedication, inviting everyone to elevate their journey with the level of
accuracy in sound which has become characteristic for every Ortofon cartridge. Tailored for music lovers, incorporating a
straightforward installation, premium sound, and a timeless design. Concorde Music stands for a commitment to musicality.

Unique in-house rubber production a crucially important and vital part of a phono cartridge overall performance is the stylus
rubber suspension. Ortofon develops exclusive rubber compounds and produce the rubber suspensions and dampers in-house.

Ortofon quad-coil generating system with split pole pins in Concorde Music results in an exceptional channel balance and channel
separation, delivering a precise and dynamic sound image.

Ortofon, we love music!

2MR: the newest addition to the renowned 2M Series
Ortofon 2MR features a specially designed cartridge housing tailored for turntables and tonearms like Rega matching their requirement for low-form factor cartridges. With its narrow cartridge housing, it seamlessly integrates without a need for modifications or spacers under the tonearm, enabling quick and easy mounting with just two screws. Ortofon 2MR cartridges features unique to Ortofon technologies like: High-performance quad coil motor system with split pole pins, Proprietary Ortofon premium and high-end rubber dampers plus full compatibility with the Ortofon 2M series styli.

Authentic sound reproduction
2MR continues the 2M Series' commitment to authentic sound reproduction.
A high-performance motor system featuring quad coils and split pole pins minimizes eddy current losses, enhancing channel balance and accuracy.
This innovation results in a clean, detailed, and true-to-life sound, faithfully capturing the nuances of your cherished vinyl collection.

More than just a cartridge
2MR cartridge are for those who value an authentic immersive listening experience when listening to their music. 2MR lets you rediscover your vinyl collection with enhanced clarity and precision.
The 2MR maintains the hallmark of interchangeability, allowing you to explore your records in greater depth and detail. The seamless transition between stylus profiles lets you tailor your listening experience, ensuring every note is heard with unparalleled accuracy and emotion. The 2MR series empowers you to explore your records like never before, allowing you to savor every moment of your favorite music.
The 2MR lets you rediscover your vinyl collection with enhanced clarity and precision.

2MR cartridge key features:
• Slimline cartridge body effectively eliminates the need for tonearm spacers, shims or modifications on turntables needing a low form factor cartridge.
• High-performance motor system incorporating unique to Ortofon quad coils with split pole pins, delivering a clean detailed and true-to-life sound.
• 100% compatibility with the 2M styli Ortofon 2MR use the well-known 2M styli.
• Standard half inch mounting quick and easy mounting on the tonearms with just two screws.
• Full range setup 2MR ranges from Mono to Premium: 2MR Red to High-end: 2MR Black LVB 250

Next level authenticity with the 2M Blue
The goal for any cartridge should be to reproduce the sound as close to the artists vision as possible, and the 2M blue takes you further on this journey of authenticity. With the 2M Blue, you get serious about listening to vinyl.

Features:
The 2M Blue features a Nude Elliptical diamond and split pole pins with a copper wire.

Designed for easy mounting of the cartridge, and for the weight and size to fit the most common turntables on the market today. The 2M Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps.

The 2M Blue adds more dynamics and resolution, sounds more open and reproduces more details compared to the 2M Red model.

Technical data:
• Output voltage at 1000 Hz, 5cm/sec. - 5.5 mV
• Channel balance at 1 kHz - 1.5 dB
• Channel separation at 1 kHz - 25 dB
• Channel separation at 15 kHz - 15 dB
• Frequency response - 20-20.000 Hz + 2 / - 1 dB
• Tracking ability at 315Hz at recommended tracking force - 80 µm
• Compliance, dynamic, lateral - 20 µm/mN
• Stylus type - Nude Elliptical
• Stylus tip radius - r/R 8/18 µm
• Tracking force range - 1.6-2.0 g (16-20 mN)
• Tracking force, recommended - 1.8 g (18 mN)
• Tracking angle - 20°
• Internal impedance, DC resistance - 1.3 kOhm
• Internal inductance - 700 mH
• Recommended load resistance - 47 kOhm
• Recommended load capacitance - 150-300 pF
• Cartridge colour, body/stylus - Black/Blue
• 2MR cartridge weight - 6 g
• 2M and 2M Verso cartridges weight - 7.2 g
• 2M Premounted cartridge weight - 16.7 g

Replacement stylus unit - 2M Blue (interchangeable with 2M Red and 2M Silver)

Stylus lifetime:
with proper care we find that up to 1000 hours is possible without degradation of performance.

2M Series styli interchangeability:
The 2M Series' engines, coils and magnets configurations are not identical: Red and Blue are identical, so are the Bronze and Black and so are the true mono variants 2M Mono and 2M 78. Likewise, 2M series styli are interchangeable within the below combinations:
- 2M Red, 2M Blue and 2M Silver
- 2M Bronze and 2M Black
- 2M Mono and 2M 78

2MR: the newest addition to the renowned 2M Series
Ortofon 2MR features a specially designed cartridge housing tailored for turntables and tonearms like Rega matching their requirement for low-form factor cartridges. With its narrow cartridge housing, it seamlessly integrates without a need for modifications or spacers under the tonearm, enabling quick and easy mounting with just two screws. Ortofon 2MR cartridges features unique to Ortofon technologies like: High-performance quad coil motor system with split pole pins, Proprietary Ortofon premium and high-end rubber dampers plus full compatibility with the Ortofon 2M series styli.

Authentic sound reproduction
2MR continues the 2M Series' commitment to authentic sound reproduction.
A high-performance motor system featuring quad coils and split pole pins minimizes eddy current losses, enhancing channel balance and accuracy.
This innovation results in a clean, detailed, and true-to-life sound, faithfully capturing the nuances of your cherished vinyl collection.

More than just a cartridge
2MR cartridge are for those who value an authentic immersive listening experience when listening to their music. 2MR lets you rediscover your vinyl collection with enhanced clarity and precision.
The 2MR maintains the hallmark of interchangeability, allowing you to explore your records in greater depth and detail. The seamless transition between stylus profiles lets you tailor your listening experience, ensuring every note is heard with unparalleled accuracy and emotion. The 2MR series empowers you to explore your records like never before, allowing you to savor every moment of your favorite music.
The 2MR lets you rediscover your vinyl collection with enhanced clarity and precision.

2MR cartridge key features:
• Slimline cartridge body effectively eliminates the need for tonearm spacers, shims or modifications on turntables needing a low form factor cartridge.
• High-performance motor system incorporating unique to Ortofon quad coils with split pole pins, delivering a clean detailed and true-to-life sound.
• 100% compatibility with the 2M styli Ortofon 2MR use the well-known 2M styli.
• Standard half inch mounting quick and easy mounting on the tonearms with just two screws.
• Full range setup 2MR ranges from Mono to Premium: 2MR Red to High-end: 2MR Black LVB 250

Bona fide precision with the 2M Bronze
To us hi-fi is more than a fancy label. High fidelity is the goal of everything we do. The 2M Bronze is designed to give the music a whole new dimension of precision. Listening to your records with the 2M Bronze is like hearing them for the first time and you get to fall in love with the songs all over. That is what hi-fi means to us and that is what you get with the 2M Bronze.

Features:
The 2M Bronze features a Nude Fine Line diamond, which is particularly suited for demanding applications. The slim profile of the Fine Line stylus will track even the highest frequency information. Additionally, its larger footprint ensures reduced distortion and record wear. The 2M Bronze uses a special upgraded engine, featuring split pole pins with a silver plated copper wire.

We have optimized the design for ease of mounting the cartridge, and the weight and size to fit the most common turntables on the market today. The 2M Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps.

Technical data:
• Output voltage at 1000 Hz, 5cm/sec. - 5 mV
• Channel balance at 1 kHz - 1 dB
• Channel separation at 1 kHz - 26 dB
• Channel separation at 15 kHz - 15 dB
• Frequency response - 20-20.000 + 2 / - 0 dB
• Tracking ability at 315Hz at recommended tracking force - 80 µm
• Compliance, dynamic, lateral - 22 µm/mN
• Stylus type - Nude Fine Line
• Stylus tip radius - r/R 8/40 µm
• Tracking force range - 1.4-1.7 g (14-17 mN)
• Tracking force, recommended - 1.5 g (15 mN)
• Tracking angle - 20°
• Internal impedance, DC resistance - 1.2 kOhm
• Internal inductance - 630 mH
• Recommended load resistance - 47 kOhm
• Recommended load capacitance - 150-300 pF
• Cartridge colour, body/stylus - Black/Bronze
• 2MR cartridge weight - 6 g
• 2M and 2M Verso cartridges weight - 7.2 g
• 2M Premounted cartridge weight - 16.7 g

Replacement stylus unit - 2M Bronze (interchangeable with 2M Black and 2M Black LVB 250)

Stylus lifetime:
with proper care we find that up to 1000 hours is possible without degradation of performance.

2M Series styli interchangeability:
The 2M Series' engines, coils and magnets configurations are not identical: Red and Blue are identical, so are the Bronze and Black and so are the true mono variants 2M Mono and 2M 78. Likewise, 2M series styli are interchangeable within the below combinations:
- 2M Red, 2M Blue and 2M Silver
- 2M Bronze and 2M Black
- 2M Mono and 2M 78

Technical specifications:
• Frequency response: 20-18.000 Hz + 3 / - 1 dB
• Tracking ability at 315Hz at recommended tracking force *): 60 µm
• Compliance, dynamic, lateral: 25 µm/mN
• Stylus type: Elliptical
• Stylus tip radius: r/R 8/18 µm
• Tracking force range: 1.0-1.5 g (10-15 mN)
• Tracking force, recommended: 1.25 g (12.5 mN)
• Tracking angle: 20°
• Stylus colour: Black
• Recommended for TM 7 and TM 7U cartridges models
*) Typical value

Technical specifications:
• Frequency response - 20-20.000 Hz + 2 / - 3 dB
• Tracking ability at 315Hz at recommended tracking force *) - 60 µm
• Compliance, dynamic, lateral - 20 µm/mN
• Stylus type - Spherical
• Stylus tip radius - R 18 µm
• Tracking force range - 1.25-1.75 g (12.5-17.5 mN)
• Tracking force, recommended - 1.5 g (15 mN)
• Tracking angle - 20°
• Stylus colour - Grey
• Recommended for Series 305 Universal
*) Typical value

Technical specifications:
• Frequency response: - 20-20.000 Hz + 2 / - 2 dB
• Tracking ability at 315Hz at recommended tracking force*): 70 µm
• Compliance, dynamic, lateral: 25 µm/mN
• Stylus type: Elliptical
• Stylus tip radius: r/R 8/18 µm
• Tracking force range: 1.0-1.5 g (10-15 mN)
• Tracking force, recommended: 1.25 g (12.5 mN)
• Tracking angle: 20°
• Stylus colour: Black
• Recommended for TM 14U
*) Typical value

Technical specifications:
• Frequency response - 20-18.000 Hz + 2 / - 3 dB
• Tracking ability at 315Hz at recommended tracking force *) - 70 µm
• Compliance, dynamic, lateral - 7 µm/mN
• Stylus type - Spherical
• Stylus tip radius - R 25µm
• Tracking force range - 2.0-3.0 g (20-30 mN)
• Tracking force, recommended - 2.5 g (25 mN)
• Tracking angle - 20°
• Stylus colour - Black
• Recommended for following cartridges: all Super OM, OM, OMP, TM, Concorde cartridges for playing micro-groove records.
*) Typical value

Technical specifications:
• Frequency response - 20-12.000 Hz + 2 / - 3 dB
• Tracking ability at 315Hz at recommended tracking force *) - 60 µm
• Compliance, dynamic, lateral - 15 µm/mN
• Stylus type - Spherical
• Stylus tip radius - 65µm
• Tracking force range - 1.75-2.25 g (17.5-22.5 mN)
• Tracking force, recommended - 2.0 g (20 mN)
• Tracking angle - 20°
• Stylus colour - Black
• Recommended for following cartridges: all Super OM, OM, OMB, OMP, TM, Concorde STD cartridges for playing 78 r.p.m. records
*) Typical value

Technical specifications:
• Frequency response - 20-18.000 Hz + 2 / - 3 dB
• Tracking ability at 315Hz at recommended tracking force *) - 60 µm
• Compliance, dynamic, lateral - 20 µm/mN
• Stylus type - Elliptical
• Stylus tip radius - r/R 8/18 µm
• Tracking force range - 1.5-2.0 g (15-20 mN)
• Tracking force, recommended - 1.75 g (17.5 mN)
• Tracking angle - 20°
• Stylus colour - Black
• Recommended for OM 3E, OMP 3E, OMB 3E
*) Typical value

Technical specifications:
• Frequency response - 20-20.000 Hz + 3 /- 3 dB
• Tracking ability at 315Hz at recommended tracking force *) - 60 µm
• Compliance, dynamic, lateral - 20 µm/mN
• Stylus type - Elliptical
• Stylus tip radius - r/R 8/18 µm
• Tracking force range - 1.25-1.75 g (12.5-17.5 mN)
• Tracking force, recommended - 1.5 g (15 mN)
• Tracking angle - 20°
• Stylus colour - Black
• Recommended for Series 500 Mkll, 510, 510 P, Alfa
*) Typical value

Technical specifications:
• Frequency response - 20-20.000 Hz + 3 /- 3 dB
• Tracking ability at 315Hz at recommended tracking force *) - 60 µm
• Compliance, dynamic, lateral - 20 µm/mN
• Stylus type - Elliptical
• Stylus tip radius - r/R 8/18 µm
• Tracking force range - 1.25-1.75 г (12.5-17.5 мН)
• Tracking force, recommended - 1.5 g (15 mN)
• Tracking angle - 20°
• Stylus colour - Grey
• Recommended for Series 310 Universal
*) Typical value

The LH-2000 is a basic high quality headshell designed specifically for HiFi applications. Providing a clean, minimalist aesthetic, the LH-2000 is great for a wide variety of cartridges, e.g. the 2M Series .

Knowing the fundamental headshell dimensions will in a lot of cases make it easier to mount and align cartridge and tonearm correctly. Please scroll to the bottom of the page to see the headshells mounting dimensions chart.

The LH-2000 comes with leadwires for easy and convenient connection
All Ortofon cartridges have a colour coding of the terminals, indicating red and green for right channel respectively hot and ground terminal. White and blue for left channel respectively hot and ground terminal. Green terminal will always be used for grounding the cartridge housings or motor-system, whenever connected inside the cartridge.

We recommend to connect lead wires to the cartridge and headshell before mounting the cartridge on the headshell.

Please remember correct orientation of the leads. Ortofon cartridges' terminal PINs diameter is 1.2 mm, whilst Ortofon headshells' PINs diameter is only 1.0 mm.

Features and Technical data:
• Universal mount
• Solid aluminum build
• Weight without screws - 15.5 grams
• Mounting distance - min 35.3 mm, max 43.4 mm
• Headshell length - 50.3 mm
• Headshell width - 20.0 mm

Luxury leadwireset
LW-6N is the 6N lead wire made of Ultra High Purity Copper wire.
The configuration is very sofisticated with different diameter of wire strand, the inside strand is right windings, the outside strand is left winding. The end of wire is fastened by gold plated terminal.
The tight winding against each other makes the clear transmission of music signals. Clear and crisp tonality.

Technical data:
• High purity Cu wire 6NCu: 7 x φ 0.18mm (Right strands)
• High purity Cu wire 6NCu: 17 x φ 0.10mm (Left strands)

Mounting instructions:
All Ortofon cartridges have a colour coding of the terminals, indicating red and green for right channel respectively hot and ground terminal. White and blue for left channel respectively hot and ground terminal. Green terminal will always be used for grounding the cartridge housings or motor-system, whenever connected inside the cartridge.

We recommend to connect lead wires to the cartridge and headshell before mounting the cartridge on the headshell. Please remember correct orientation of the leads. Ortofon SH-4 headshell and Ortofon cartridges' terminal PINs diameter is 1.2 mm, whilst Ortofon headshells' PINs diameter is normally only 1.0 mm.

Using LW 6N with the SH-4 headshell requies the LW 6N shell side clamp to be widened a little bit to fit on the SH-4 PINs. If shifted around, it may cause over-tightening of the assembly. Being aware about this detail, you will avoid the risk of having the cartridge's terminal PINs fall out.

The OM 5S is a moving magnet cartridge for general purpose application
If your tonearm has a standard headshell or a cartridge mount, then step up to optimal sound reproduction with OM’s. A glance at anyone of these cartridges will reveal Ortofon's answer to perfect tonearm matching. Ingeniously tucked into the top of the mounting bracket is a tiny, removable weight-plate.

If your tonearm is an standard tonearm, just leave the weight-plate. If your tonearm is one of the low mass types, then simply remove the weight. The mass of your OM cartridge is now a mere 2.5 g.

The OM 5S features Spherical stylus, robust and economic solution for play back of vinyl records.

For more than 50 years, Ortofon has been designing and manufacturing Moving Magnet cartridges. Along with our well-regarded Moving Coil cartridges, Moving Magnet models have established a good reputation among music lovers and Hi-Fi enthusiasts the world over.

The new Ortofon OM 5 series encompasses three basic cartridges: OM 5S, OM 5E and Super OM 5E.
• The series is the lowest-mass range of moving magnet cartridges offered by Ortofon.
• The OM cartridges bodies have been designed to provide easy mounting and alignment on both top mount and bottom mount headshells.
• The OM 5 Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps.

OM 5S Technical data:
• Output voltage at 1000 Hz, 5cm/sec. - 4.5 mV
• Channel balance at 1 kHz - 2 dB
• Channel separation at 1 kHz - 20 dB
• Channel separation at 15 kHz - 12 dB
• Frequency response - 20-22.000 Hz
• Tracking ability at 315Hz at recommended tracking force *) - 60 µm
• Compliance, dynamic, lateral - 20 µm/mN
• Stylus type - Spherical
• Stylus tip radius - R 18 µm
• Tracking force range - 1.5-2.0 g (15-20 mN)
• Tracking force, recommended - 1.75 g (17.5 mN)
• Tracking angle - 20°
• Internal impedance, DC resistance - 750 Ohm
• Internal inductance - 450 mH
• Recommended load resistance - 47 kOhm
• Recommended load capacitance - 200-500 pF
• Cartridge colour, body/stylus - Black/Black
• Cartridge weight incl. extra weight - 5 g
• Cartridge weight excl. extra weight - 2.5 g
• Replacement stylus unit - Stylus 5S
*) Typical value

Styli types and interchangeability
By adopting a wide range of replacement styli, the OM 5 Series can provide an optimum match for your home system, application and budget.
In the development of OM cartridges, a major objective was to provide the music lover with the opportunity to optimize sound reproduction without having to replace the entire cartridge. Instead of being merely intended for replacement purposes following wear or damage, the OM 5 Series allows you to step up to better sound by simply upgrading the stylus. Depending on your preference, styli for the OM 5 Series are easily interchanged and include: styli 3E, 5E, 10, 20, 30, 40 & 78 and D 25 M.

Ortofon SH-4 headshells are high-quality, solid headshells for variety of applications

The SH-4 headshell has an ergonomic design with a long finger that is easy to pick-up. The big finger grip and shorter construction makes movement and placement of the headshell easy and visible.
The wire terminals on the rear side are also gold plated for better signal transmission.

Dimensions and weight:
• Weight: 9.4g
• Shell length: 51.5mm
• Finger Length: 27mm

The SH-4 comes with leadwires for easy and convenient connection
All Ortofon cartridges have a colour coding of the terminals, indicating red and green for right channel respectively hot and ground terminal. White and blue for left channel respectively hot and ground terminal. Green terminal will always be used for grounding the cartridge housings or motor-system, whenever connected inside the cartridge.

We recommend to connect lead wires to the cartridge and headshell before mounting the cartridge on the headshell.

Ortofon SH-4 headshell PINs and Ortofon cartridges' terminal PINs diameter is 1.2 mm. Leadwires supplied fit all right on the cartridges' terminal PINs.

Optimal fit and sound reproduction
If your tonearm has a standard headshell or a cartridge mount, then step up to optimal sound reproduction with OM’s. A glance at anyone of these cartridges will reveal Ortofon's answer to perfect tonearm matching. Ingeniously tucked into the top of the mounting bracket is a tiny, removable weight-plate.

If your tonearm is an standard tonearm, just leave the weight-plate. If your tonearm is one of the low mass types, then simply remove the weight. The mass of your OM cartridge is now a mere 2.5g.

OM 5E features Elliptical stylus that provides balanced and distortion-free playback. Elliptical diamonds are able to follow the groove oscillations more accurately than spherical diamonds due to their contoured shape. This results in better tracking and less distortion.

• OM 5E Technical data:
• Output voltage at 1000 Hz, 5cm/sec. - 4 mV
• Channel balance at 1 kHz - 2 dB
• Channel separation at 1 kHz - 22 dB
• Channel separation at 15 kHz - 15 dB
• Frequency response - 20-20.000 Hz + 3 / -3
• Tracking ability at 315Hz at recommended tracking force *) - 60 µm
• Compliance, dynamic, lateral - 20 µm/mN
• Stylus type - Elliptical
• Stylus tip radius - r/R 8/18 µm
• Tracking force range - 1.5-2.0 g (15-20 mN)
• Tracking force, recommended - 1.75 g (17.5 mN)
• Tracking angle - 20°
• Internal impedance, DC resistance - 750 Ohm
• Internal inductance - 450 mH
• Recommended load resistance - 47 kOhm
• Recommended load capacitance - 200-500 pF
• Cartridge colour, body/stylus - Black/Black
• Cartridge weight incl. extra weight - 5 g
• Cartridge weight excl. extra weight - 2.5 g
• Replacement stylus unit - Stylus 5E
*) Typical value

Styli types and interchangeability
By adopting a wide range of replacement styli, the OM 5 Series can provide an optimum match for your home system, application and budget.
In the development of OM cartridges, a major objective was to provide the music lover with the opportunity to optimize sound reproduction without having to replace the entire cartridge. Instead of being merely intended for replacement purposes following wear or damage, the OM 5 Series allows you to step up to better sound by simply upgrading the stylus. Depending on your preference, styli for the OM 5 Series are easily interchanged and include: styli 3E, 5E, 10, 20, 30, 40 & 78 and D 25 M.

Luxury leadwireset
LW-7N is the hybrid lead wire made of Ultra High Purity Copper wire of 7N and 6 N. The end of wire is fastened by Rhodium plated terminal.
As there is no foreign particle other than Copper 7N (99.99999 % purity) in the wire, music signal can be transmitted without any noise.

Technical data:
• High purity Cu wire 7NCu: 3 x φ 0.26mm
• High purity Cu wire 6NCu: 16 x φ0.10mm

Mounting instructions:
All Ortofon cartridges have a colour coding of the terminals, indicating red and green for right channel respectively hot and ground terminal. White and blue for left channel respectively hot and ground terminal. Green terminal will always be used for grounding the cartridge housings or motor-system, whenever connected inside the cartridge.

We recommend to connect lead wires to the cartridge and headshell before mounting the cartridge on the headshell. Please remember correct orientation of the leads. Ortofon SH-4 headshell and Ortofon cartridges' terminal PINs diameter is 1.2 mm, whilst Ortofon headshells' PINs diameter is normally only 1.0 mm.

Using LW 7N with the SH-4 headshell requies the LW 7N shell side clamp to be widened a little bit to fit on the SH-4 PINs. If shifted around, it may cause over-tightening of the assembly. Being aware about this detail, you will avoid the risk of having the cartridge's terminal PINs fall out.

The Super OM 5E major improvements:
1. By means of computer simulations it has been possible to define the natural pivot point of the system with unprecedented accuracy while achieving an optimum oscillation balance. The result: improved linearity, higher channel separation and reduced distortion.

2. OM Super cartridges models have split pole PINs which reduces magnetic losses at the treble end. This technology extends the frequency range and improves phase linearity.

3. OM Super 5 cartridge body is manufactured from a Noryl (plastic & glass compound) which ensures high rigidity and freedom from resonances.

Optimal fit and sound reproduction
If your tonearm has a standard headshell or a cartridge mount, then step up to optimal sound reproduction with OM’s. A glance at anyone of these cartridges will reveal Ortofon's answer to perfect tonearm matching. Ingeniously tucked into the top of the mounting bracket is a tiny, removable weight-plate.

If your tonearm is an standard tonearm, just leave the weight-plate. If your tonearm is one of the low mass types, then simply remove the weight. The mass of your OM cartridge is now a mere 2.5g.

Super OM 5E features Elliptical stylus that provides balanced and distortion-free playback. Elliptical diamonds are able to follow the groove oscillations more accurately than spherical diamonds due to their contoured shape. This results in better tracking and less distortion.

Super OM 5 Technical data:
• Output voltage at 1000 Hz, 5cm/sec. - 4 mV
• Channel balance at 1 kHz - 1.5 dB
• Channel separation at 1 kHz - 22 dB
• Channel separation at 15 kHz - 15 dB
• Frequency response - 20-20.000 Hz + 3 / -3
• Tracking ability at 315Hz at recommended tracking force - 60 µm
• Compliance, dynamic, lateral - 20 µm/mN
• Stylus type - Elliptical
• Stylus tip radius - r/R 8/18 µm
• Tracking force range - 1.5-2.0 g (15-20 mN)
• Tracking force, recommended - 1.75 g (17.5 mN)
• Tracking angle - 20°
• Internal impedance, DC resistance - 1 kOhm
• Internal inductance - 580 mH
• Recommended load resistance - 47 kOhm
• Recommended load capacitance - 200-500 pF
• Cartridge colour, body/stylus - Black/Black
• Cartridge weight incl. extra weight - 5 g
• Cartridge weight excl. extra weight - 2.5 g
• Replacement stylus unit - Stylus 5 E, Stylus 10

Styli types and interchangeability
The OM 5s features a Spherical diamond. Spherical diamonds are the simplest and most robust diamonds. The OM 5E and Super OM 5E feature an Elliptical diamond.

In the development of OM cartridges, a major objective was to provide the music lover with the opportunity to optimize sound reproduction without having to replace the entire cartridge. Instead of being merely intended for replacement purposes following wear or damage, the OM 5 Series allows you to step up to better sound by simply upgrading the stylus.

Depending on your preference, styli for the OM 5 Series are easily interchanged and include: styli 3E, 5E, 10, 20, 30, 40 & 78 and D 25 M.

The new Ortofon OM 5 series encompasses three basic cartridges: OM 5S, OM 5E and Super OM 5E.
• The series is the lowest-mass range of moving magnet cartridges offered by Ortofon.
• The OM cartridges bodies have been designed to provide easy mounting and alignment on both top mount and bottom mount headshells.
• The OM 5 Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps.

The LH-4000 is a basic high quality headshell designed specifically for HiFi applications. Providing a clean, minimalist aesthetic, the LH-4000 is great for a wide variety of cartridges, specially recommended for the MC Quintet series.

Special features:
• Azimuth adjustable, which is beneficial for optimal channel separation
• Ergonomic fingerlift for easy handling
• Knowing the fundamental headshell dimensions will in a lot of cases make it easier to mount and align cartridge and tonearm correctly. Please scroll to the bottom of the page to see the headshells mounting dimensions chart.

The LH-4000 comes with leadwires for easy and convenient connection
All Ortofon cartridges have a colour coding of the terminals, indicating red and green for right channel respectively hot and ground terminal. White and blue for left channel respectively hot and ground terminal. Green terminal will always be used for grounding the cartridge housings or motor-system, whenever connected inside the cartridge.

We recommend to connect lead wires to the cartridge and headshell before mounting the cartridge on the headshell.

Please remember correct orientation of the leads. Ortofon cartridges' terminal PINs diameter is 1.2 mm, whilst Ortofon headshells' PINs diameter is only 1.0 mm.

Features and Technical data:
• Universal mount
• Solid aluminum build
• Azimuth adjustable by means of hexagon wrench
• PIN conductor - Gold plated
• Weight - 14.3 grams without screws
• Mounting distance min. - 39.5 mm
• Mounting distance max. - 45.6 mm
• Headshell length - 51.9 mm
• Headshell width - 19.1 mm

Stylus guard (1 Pcs.)

Styli protection caps for VNL cartridges and styli

The stylus protection guard helps to limit stylus damage, if the cartridge accidentally slides across a record or if the cartridge is dropped onto the record.

The protection caps come in pairs.

LW-800S is the most sophisticated lead wires composed of Pure Silver and Silver coated wire.
The end of wire is fastened by Rhodium plated terminal.
Since Silver has the best electrical conductive properties of all the metals, the LW-800S silver wire is able to transmits the very clear high tone signals, which brings the brilliant tonality to the sound reproduction.

Technical data:
• 4N Pure Silver wire: 3 x φ 0.26mm
• Silver plated Oxygen Free Copper (OFC) wire: 16 x φ0.10mm

Mounting instructions:
All Ortofon cartridges have a colour coding of the terminals, indicating red and green for right channel respectively hot and ground terminal. White and blue for left channel respectively hot and ground terminal. Green terminal will always be used for grounding the cartridge housings or motor-system, whenever connected inside the cartridge.

We recommend to connect lead wires to the cartridge and headshell before mounting the cartridge on the headshell. Please remember correct orientation of the leads. Ortofon SH-4 headshell and Ortofon cartridges' terminal PINs diameter is 1.2 mm, whilst Ortofon headshells' PINs diameter is normally only 1.0 mm.

Using LW 8N with the SH-4 headshell requies the LW 8N shell side clamp to be widened a little bit to fit on the SH-4 PINs. If shifted around, it may cause over-tightening of the assembly. Being aware about this detail, you will avoid the risk of having the cartridge's terminal PINs fall out.

Screws for mounting 2M cartridges on the headshell incl.:
• 2x 2.5x5mm
• 2x 2.5x7mm

Step into the music with the 2M Red
With the 2M Red you will hear the music come to life on its own terms. It is like taking a step into music itself. This is our entry-level cartridge in the series, but what an entry.

Featues:
The 2M Red features a tipped Elliptical diamond and split pole pins with a copper wire.
The engine provides an increased output of 5.5 mV and an optimized sound reproduction and a high level of sonic accuracy.

Designed for easy mounting of the cartridge, and for the weight and size to fit the most common turntables on the market today. The 2M Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps.

2M Red delivers an open, dynamic sound with a slight touch of warmth.

2M Red Technical data:
• Output voltage at 1000 Hz, 5cm/sec. - 5.5 mV
• Channel balance at 1 kHz - 1.5 dB
• Channel separation at 1 kHz - 22 dB
• Channel separation at 15 kHz - 15 dB
• Frequency response - 20-20.000 Hz + 3 / - 1 dB
• Tracking ability at 315Hz at recommended tracking force - 70 µm
• Compliance, dynamic, lateral - 20 µm/mN
• Stylus type - Elliptical
• Stylus tip radius - r/R 8/18 µm
• Tracking force range - 1.6-2.0 g (16-20 mN)
• Tracking force, recommended - 1.8 g (18 mN)
• Tracking angle - 20°
• Internal impedance, DC resistance - 1.3 kOhm
• Internal inductance - 700 mH
• Recommended load resistance - 47 kOhm
• Recommended load capacitance - 150-300 pF
• Cartridge colour, body/stylus - Black/Red
• 2M standard and 2M Verso cartridges weight - 7.2 g
• Premounted cartridge weight - 16.7 g
• Replacement stylus unit - 2M Red (interchangeable with 2M Blue and 2M Silver)

Stylus lifetime: with proper care we find that up to 1000 hours is possible without degradation of performance.

2M Series styli interchangeability:
The 2M Series' engines, coils and magnets configurations are not identical: Red and Blue are identical, so are the Bronze and Black and so are the true mono variants 2M Mono and 2M 78. Likewise, 2M series styli are interchangeable within the below combinations:
- 2M Red, 2M Blue and 2M Silver
- 2M Bronze, 2M Black and 2M Black LVB 250
- 2M Mono and 2M 78

Compatibility with Rega brand TT/TA:
REGA brand cartridges’ height from stylus tip to the top cartridge mounting surface is lower than standard. Therefore you would need spacers to ensure the correct set-up of the Ortofon cartridge.
Adjusting the height of your Rega tonearm is easy with Acoustic Signature's Spacer Set. It allows you to adjust the height from 0.5 mm to 3.5 mm in precise steps of 0.5 mm - without removing the tone arm. Simply loosen the screws, insert the AS-spacer, then lock the screws back down, and you're tonearm is ready to play.
3.2 - 4 mm spacers should be enough for 2M cartridge.

With the 2M Premounted, it’s never been easier to experience.
The 2M Premounted is a practical and elegant solution for our customers who wish direct and easy mounting and replacement on their S-shaped tonearm. The quality of the SH-4 headshell is sturdy and rigid, yet the design emphasizes a slim and delicate form factor. The strong, lightweight headshell has an ergonomic design with a long finger lift that is easy to pick up.

Features:
- Premounted on our popular SH-4 Black headshell.
- Easy and direct mount on S-shaped tonearms with universal mount.
- Correct Baerwald alignment with tonearms with universal mount.

Technical specifications:
• Frequency response - 20-20.000 Hz + 2 / - 3 dB
• Tracking ability at 315Hz at recommended tracking force *) - 70 µm
• Compliance, dynamic, lateral - 25 µm/mN
• Stylus type - Nude Elliptical
• Stylus tip radius - r/R 8/18 µm
• Tracking force range - 1.25-1.75 g (12.5-17.5 mN)
• Tracking force, recommended - 1.5 g (15 mN)
• Tracking angle - 20°
• Stylus colour - Black
• Recommended for following cartridges: Super OM 20, OM 20, OMP 20, OMB 20, LM 20, Concorde 20, LM 20H, TM 20U, TM 20H
*) Typical value

The 2M 78 features an improved engine, which provides a high level of sonic accuracy. The stylus' tip is a Spherical diamond that is perfect for playback of 78 rpm shellac records, which require a larger stylus profile. The cartridge body is manufactured from Hopelex, which ensures high rigidity while eliminating unwanted resonances.

2M 78 uses a strapped output to deliver the same output signal from both sets of pole pins. This effectively eliminates the need for mono-specific equipment, making it possible to enjoy true mono reproduction on any stereo playback system.

The 2M Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps.

2M 78 Technical data:
• Output voltage at 1000 Hz, 5cm/sec. - 4 mV
• Frequency response - 20-20.000 Hz + 3 / - 1 dB
• Tracking ability at 315Hz at recommended tracking force - 70 µm
• Compliance, dynamic, lateral - 18 µm/mN
• Stylus type - Spherical
• Stylus tip radius - R 65 µm
• Tracking force range - 1.6-2.0g (16-20 mN)
• Tracking force, recommended - 1.8 g (18 mN)
• Internal impedance, DC resistance - 700 Ohm
• Internal inductance - 350 mH
• Recommended load resistance - 47 kOhm
• Recommended load capacitance - 150-300 pF
• Tracking angle - 20°
• Cartridge colour, body/stylus - Black/Grey
• Cartridge weight without screws - 7.2 g
• Premounted cartridge weight - 16.7 g
• Replacement stylus unit - 2M 78 (interchangeable with 2M Mono)

Stylus lifetime: with proper care we find that up to 1000 hours is possible without degradation of performance.

2M Series styli interchangeability:
The 2M Series' engines, coils and magnets configurations are not identical: Red and Blue are identical, so are the Bronze and Black and so are the true mono variants 2M Mono and 2M 78. Likewise, 2M series styli are interchangeable within the below combinations:
- 2M Red, 2M Blue and 2M Silver
- 2M Bronze and 2M Black
- 2M Mono and 2M 78

Compatibility with Rega brand TT/TA:
REGA brand cartridges’ height from stylus tip to the top cartridge mounting surface is lower than standard. Therefore you would need spacers to ensure the correct set-up of the Ortofon cartridge.
Adjusting the height of your Rega tonearm is easy with Acoustic Signature's Spacer Set. It allows you to adjust the height from 0.5 mm to 3.5 mm in precise steps of 0.5 mm - without removing the tone arm. Simply loosen the screws, insert the AS-spacer, then lock the screws back down, and you're tonearm is ready to play.
3.2 - 4 mm spacers should be enough for 2M cartridge.
