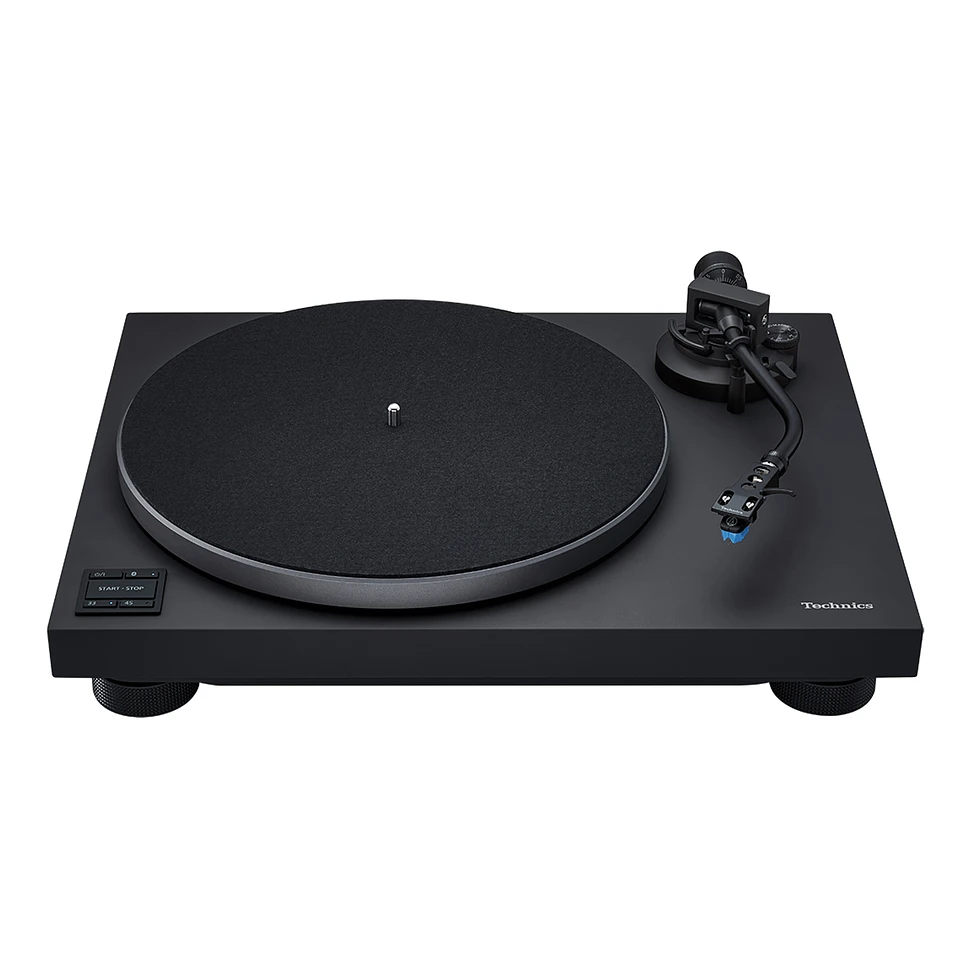

Technics SL-40CBT

SL-40CBT

The SL-40CBT features Technics' proven coreless direct drive system and is optimized for the modern lifestyle. With its compact housing, Bluetooth® connectivity, and elegant finishes, it combines technology and home aesthetics.

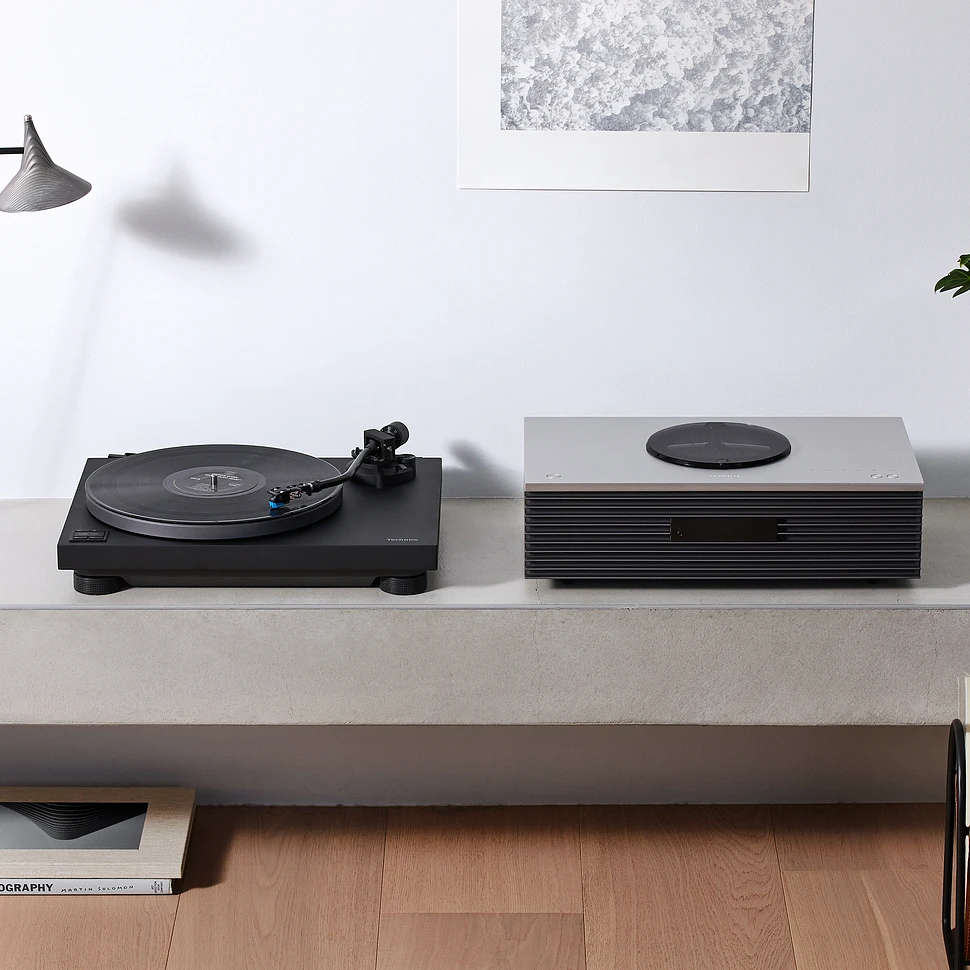

Natural look and feel
Made from MDF, a fine-pored wood fiber material, the SL-40CBT offers visual warmth and understated appeal that blends harmoniously into any living space.

Analog playback meets Bluetooth® convenience
Experience analog sound with built-in Bluetooth® and connect instantly to wireless speakers or headphones without cables or complicated setup.
* Supported codecs: Qualcomm® aptX™ Adaptive and SBC

Optimized for instant vinyl record playback
Thanks to the included cartridge system and integrated phono preamplifier, precisely tuned for optimal performance, simply connect active speakers or an amplifier with passive speakers and enjoy instant playback of your records.

Powered by the Technics legacy
For decades, Technics direct drive has set the standard for precise, maintenance-free rotation. This system, which drives the turntable directly with high torque, has been further developed and now offers even greater precision thanks to a coreless motor that eliminates cogging torque.

Tone arm
With a minimized tone arm base, the design retains the traditional S-shape. Micrometer-precise manufacturing ensures high scanning precision.

Cartridge
The included Audio-Technica AT-VM95C cartridge features a conical stylus and delivers clear sound reproduction. The integrated phono preamplifier impresses with its outstanding musicality.

Turntable
Constant rotation and precise torque control are achieved by a 1.26 kg die-cast aluminum turntable with reinforcing ribs and a directly mounted motor magnet.

Damping feet
Newly tuned damping feet increase vibration resistance and reduce acoustic feedback. The optimized rubber hardness shifts resonances specifically outside the audible range.

The intelligence behind the rotation

Digital control
Digital control maximizes rotational accuracy through: (1) precise speed detection, (2) calibration of each individual unit during production, (3) digitally optimized control signals for the motor.

Circuit layout
Separate printed circuit boards (PCBs) for the power supply, motor control, and phono EQ are positioned away from the tonearm and connected by crossover-free cabling. This minimizes sound distortion.

Phono circuitry
The integrated MM phono equalizer is optimally matched to the included cartridge system. Together with the high-quality components and housing, it ensures clear sound with minimal noise.

Environmentally friendly packaging materials
The SL-40CBT uses environmentally friendly packaging that replaces styrofoam cushioning material with cardboard to reduce plastic waste pollution in the oceans.

Technical specifications

High-precision, stable rotation with coreless direct drive motor

A compact design and natural texture that blends harmoniously into your living space

Immerse yourself in analog sound—wirelessly with built-in Bluetooth®

Ready to play right out of the box—built-in phono equalizer and cartridge for instant vinyl playback

Traditional S-shaped tonearm for precise tracking of the grooves

Maximized rotational accuracy through digital control

Size and weight
Height 128 mm
Width 430 mm
Depth 353 mm
Weight 7.1 kg

Turntable section
Motor Core-less direct drive (single rotor type)
Rotational speeds 33 1/3, 45 rpm
Housing MDF
Wow and flutter 0.025% W.R.M.S.
Platter Die-cast aluminum

Tone Arm Section
Height adjustment of damping feet Yes (new damping foot type)
Tone arm height adjustment –
Auto lifter –
Cartridge Audio Technica AT-VM95C
Additional weight –

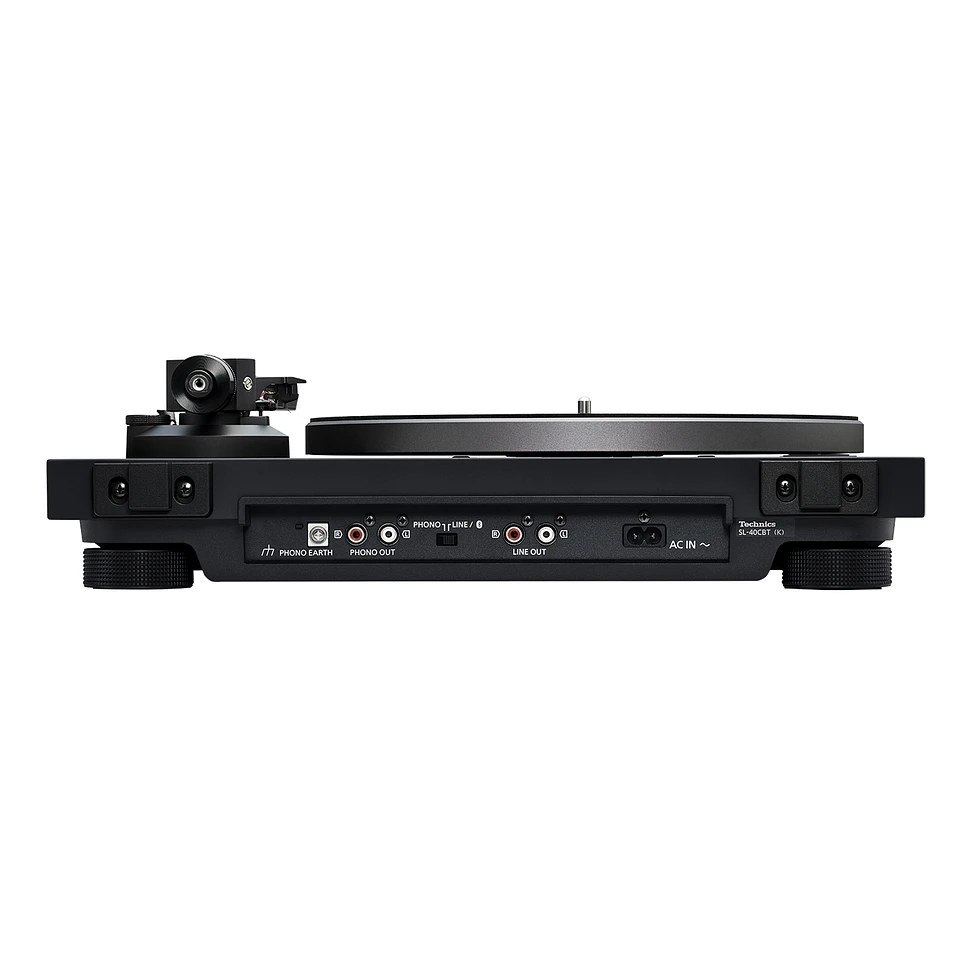

Connections
Integrated phono preamplifier Yes

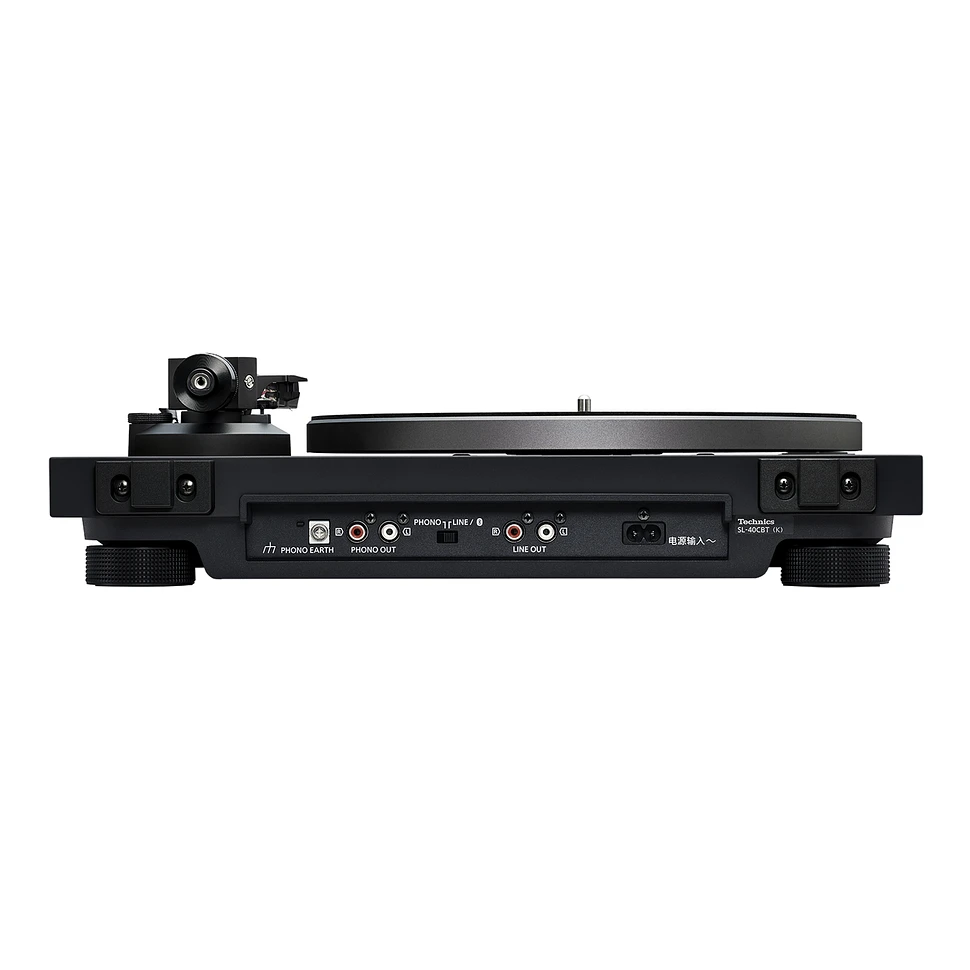

Audio outputs Phone/Line/Ground
Bluetooth transmission aptX Adaptive, SBC

General
Power supply AC 220–240 V, 50/60 Hz, switching power supply
Dimensions (W x D x H) 430 x 334 x 128 mm
Weight approx. 7.1 kg
Power cord 2-pin

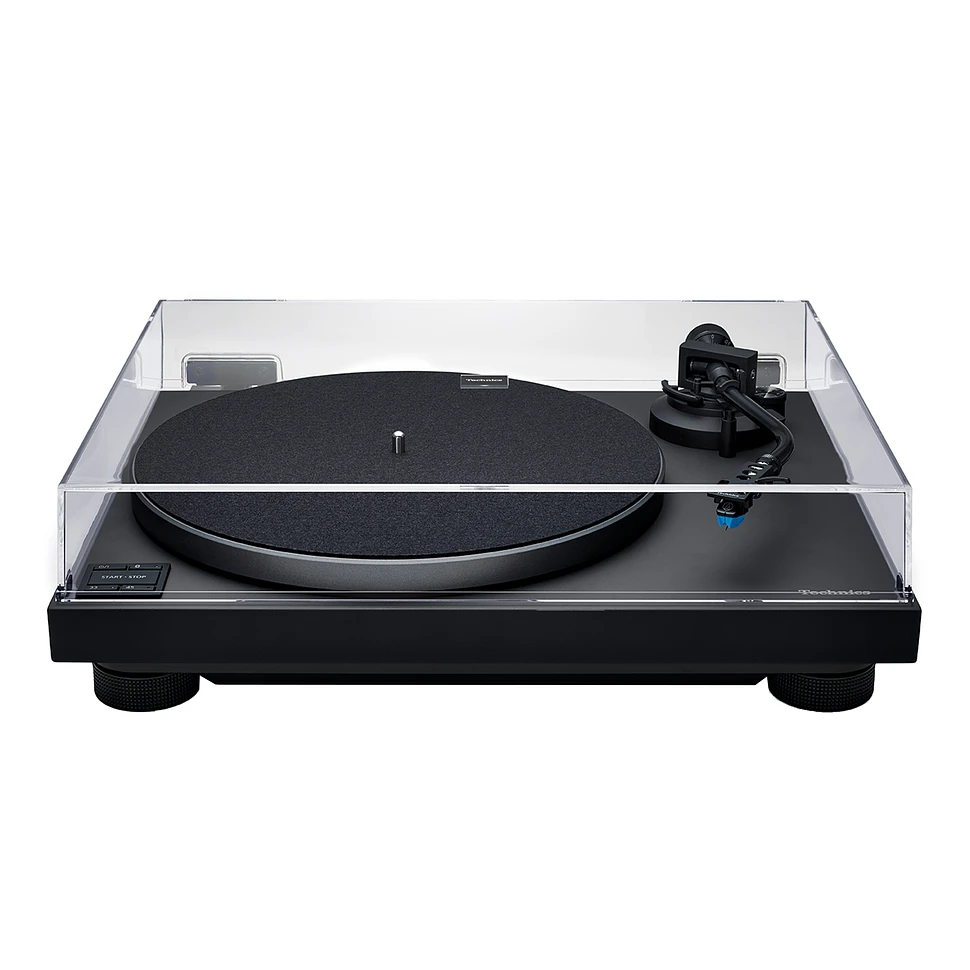

Dust cover Yes
